Specifications

Engine

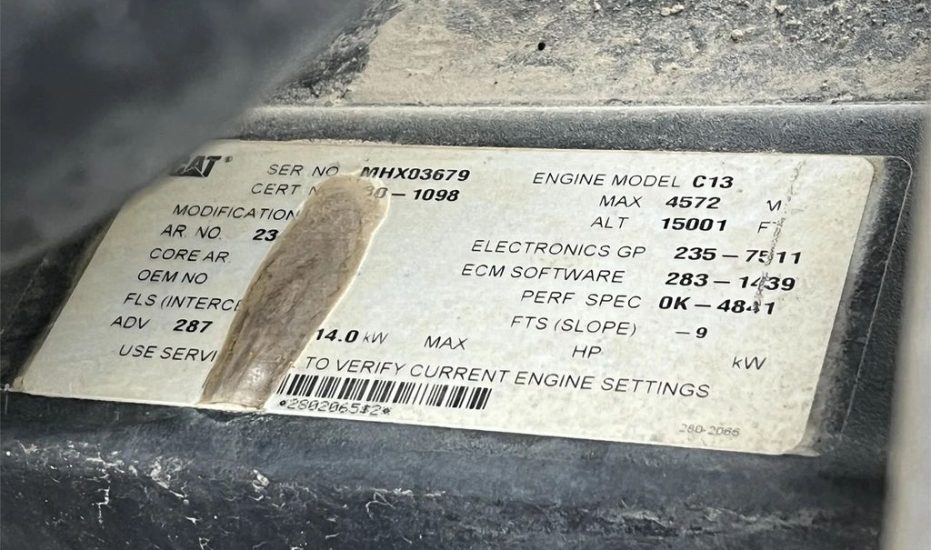

• Model: Cat® C13 ACERT™
• Gross Power: 311 hp (232 kW)
• Net Power: 287 hp (214 kW)
• Displacement: 763 in³ (12.5 L)
• Peak Torque: 983 lb-ft (1,332 N·m) at 1,400 rpm

Weights

• Operating Weight: 55,451 lbs (25,148 kg)

Performance

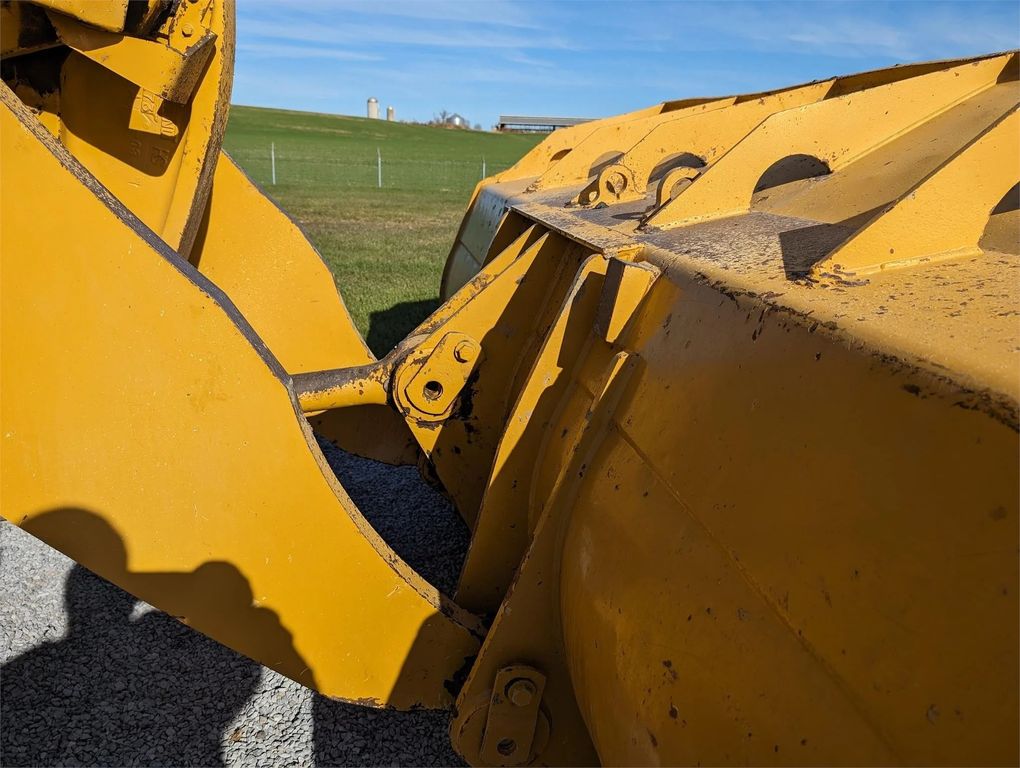

• Bucket Capacity (Heaped): 6 yd³ (4.6 m³)
• Bucket Width: 10 ft 7 in (3,220 mm)
• Breakout Force: 51,750 lbs (230 kN)
• Static Tipping Load (Full Turn): 37,271 lbs (16,903 kg)
• Dump Clearance at Max Lift: 10 ft 7 in (3,228 mm)

Dimensions

• Length with Bucket on Ground: 30 ft (9,144 mm)
• Width over Tires: 9 ft 8 in (2,946 mm)
• Height to Top of Cab: 11 ft 10 in (3,606 mm)
• Ground Clearance: 1 ft 7 in (495 mm)
• Wheelbase: 11 ft 4 in (3,450 mm)

Transmission

• Type: Powershift
• Number of Forward Gears: 4
• Number of Reverse Gears: 4
• Max Speed - Forward: 22.9 mph (36.9 km/h)
• Max Speed - Reverse: 24 mph (38.8 km/h)

Hydraulic System

• Hydraulic Flow: 81 gal/min (305 L/min)
• Relief Valve Setting: 3,000 psi (20,684 kPa)

Service Refill Capacities

• Fuel Tank: 100.4 gal (380 L)
• Cooling System: 10.3 gal (39 L)
• Engine Oil: 9.3 gal (35 L)
• Hydraulic Tank: 29 gal (110 L)
• Transmission: 9.3 gal (35 L)
• Differentials and Final Drives - Front: 16.9 gal (64 L)
• Differentials and Final Drives - Rear: 16.9 gal (64 L)
