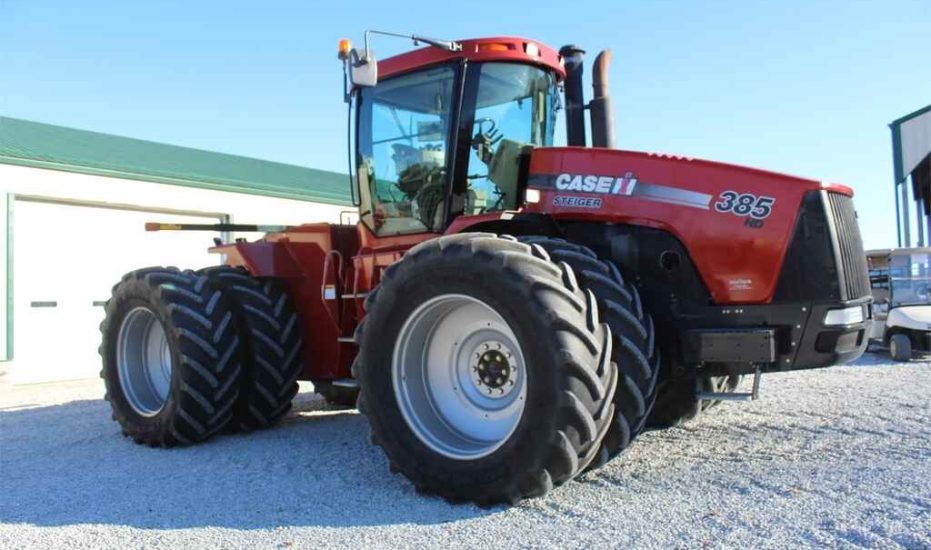

Case IH Steiger 385 Tractor -Powershift, 4 SCV’s, Duals Front & Rear, Iveco Engine

Overview

Battery

• Volts: 12
• Number: 2
• Cold-Cranking Amps: 1000
• Capacity: Not specified

Fuel

• Fuel Capacity: 300 gal (1135.5 L)

Variants

• 385 Quadtrac: Articulated crawler

Electrical

• Ground: Negative
• Charging Amps: 175
• Charging System: Alternator

Hydraulics

• Flow (without 3-point hitch): 55 gpm (208.2 lpm)
• High-Flow: 90 gpm (340.7 lpm)
• Twin-Flow: 4 to 9
• Type: Parallel pressure flow compensated (PFC)
• Valves: 4 to 5
• Total Flow: 40 gpm (151.4 lpm)

Mechanical

• Cab: Standard with heat and A/C, optional Luxury cab
• Brakes: Integrated hydraulic wet disc
• Chassis: 4×4 articulated 4WD
• Steering: Hydrostatic power

Production

• Factory: Fargo, North Dakota, USA
• Manufacturer: CaseIH
• Original Price (USD): $249,874

3-Point Hitch

• Rear Type: 4N
• Rear Lift (at 24″/610mm): 19,620 lbs (8899 kg)

Dimensions & Tires

• Weight: 37,900 to 41,605 pounds
• Rear Tire: 710/70R42
• Wheelbase: 154 inches (391 cm)
• Front Tire: 710/70R42
• Power Take-off (PTO):
  • Rear PTO: Independent (optional)
  • Rear RPM: 1000

CaseIH Steiger 385 Power

Engine:

• Engine Detail: 6-cylinder 24-valve, 786 ci (12.9 L), Iveco, liquid-cooled, turbocharged aftercooled diesel
• Power: 385 hp (287.1 kW)
• Emissions: Tier 3
• Rated RPM: 2000
• Air Cleaner: Dual paper elements
• Bore/Stroke: 5.314 x 5.906 inches (135 x 150 mm)
• Compression: 16.5:1
• Oil Capacity: 32.8 qts (31.0 L)
• Maximum Power: 423 hp (315.4 kW)
• Starter Volts: 24

Transmission:

• Type: Full power shift
• Gears: 16 forward and 2 reverse, 24 forward and 6 reverse
