Specifications

Engine

• Model: Cat® 3054C DIT
• Gross Power: 99 hp (74 kW)
• Net Power: 94.5 hp (70.4 kW)
• Displacement: 268.5 in³ (4.4 L)

Weights

• Operating Weight: 26,050 lbs (11,814 kg)

Performance

• Rated Load Capacity: 9,000 lbs (4,082 kg)
• Maximum Lift Height: 43 ft (13.1 m)
• Maximum Forward Reach: 31.5 ft (9.6 m)
• Top Travel Speed: 17.6 mph (28.3 km/h)
• Load at Maximum Height: 7,000 lbs (3,175 kg)
• Load at Maximum Reach: 1,200 lbs (544 kg)

Hydraulics

• System Operating Pressure: 4,000 psi (276 bar)
• Auxiliary Hydraulic Pressure: 3,000 psi (207 bar)
• Auxiliary Hydraulic Flow: 10 gal/min (38 L/min)

Dimensions

• Length to Fork Face: 20.5 ft (6.23 m)
• Width over Tires: 7.94 ft (2.42 m)
• Overall Height: 8 ft (2.44 m)
• Wheelbase: 11 ft (3.35 m)
• Ground Clearance: 1.59 ft (0.48 m)
• Turning Radius over Tires: 12 ft (3.66 m)

Service Refill Capacities

• Fuel Tank: 38 gal (144 L)
• Hydraulic System: 40 gal (151.4 L)

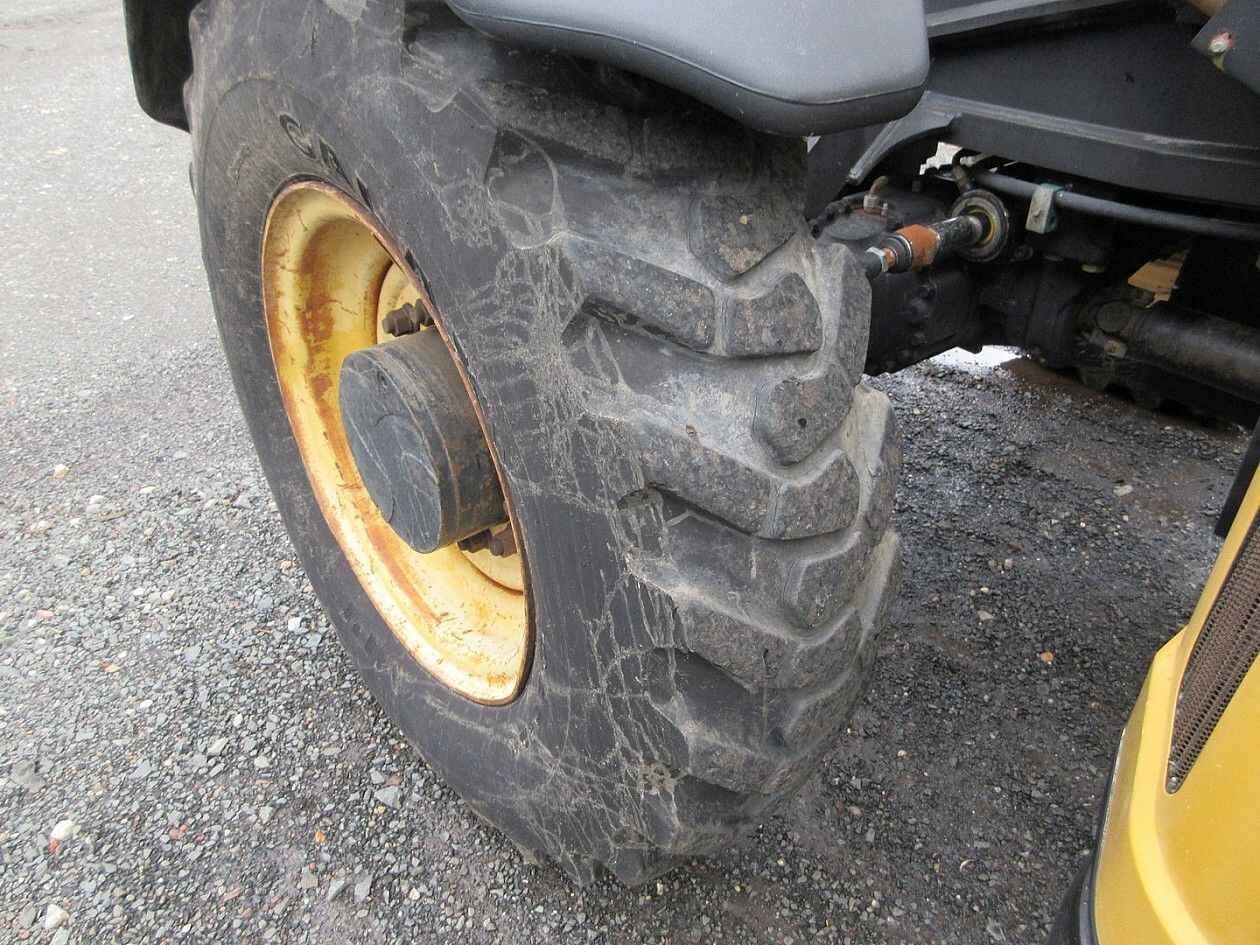

Tires

• Standard: 13.00 x 24-12 PR
• Optional: 13.00 x 24 Foam Filled, Rock Lug, or Solid
