Specifications

Engine

• Model: Cat C4.4 with ACERT Technology
• Gross Power: 133.2 hp (99 kW)
• Fuel Tank Capacity: 55 gal (208 L)

Weights

• Operating Weight (with ROPS/FOPS): 23,523 lbs (10,670 kg)
• Maximum Weight at Front Drum: 11,706 lbs (5,310 kg)
• Maximum Weight at Rear Drum: 11,817 lbs (5,360 kg)

Performance

• Standard Compaction Width: 67 in (1,700 mm)
• Drum Diameter: 47 in (1,198 mm)
• Travel Speed (Maximum): 7.5 mph (12 km/h)
• Turning Radius (Inside Drum Edge): 14.3 ft (4,378 mm)

Vibratory System

• Frequency: 2,580/3,800 vpm (43/63.3 Hz)
• Nominal Amplitude (High): 0.032 in (0.82 mm)
• Nominal Amplitude (Low): 0.012 in (0.32 mm)
• Centrifugal Force per Drum (Maximum): 24,055 lbs (107 kN)
• Centrifugal Force per Drum (Minimum): 6,407 lbs (28.5 kN)

Dimensions

• Overall Length: 177 in (4,500 mm)
• Overall Width: 74 in (1,880 mm)
• Height (with ROPS/FOPS): 117 in (2,970 mm)
• Wheelbase: 130 in (3,300 mm)
• Ground Clearance: 10 in (268 mm)
• Curb Clearance: 37 in (934 mm)

Features

• Water Spray Tank Capacity: 221 gal (836 L)
• Vibration Selection: Independent per drum, front only, rear only, both

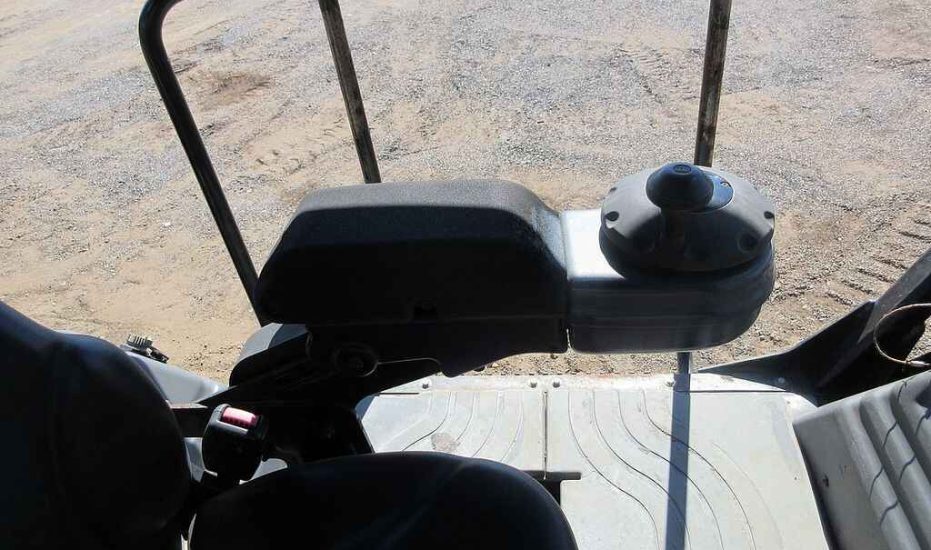

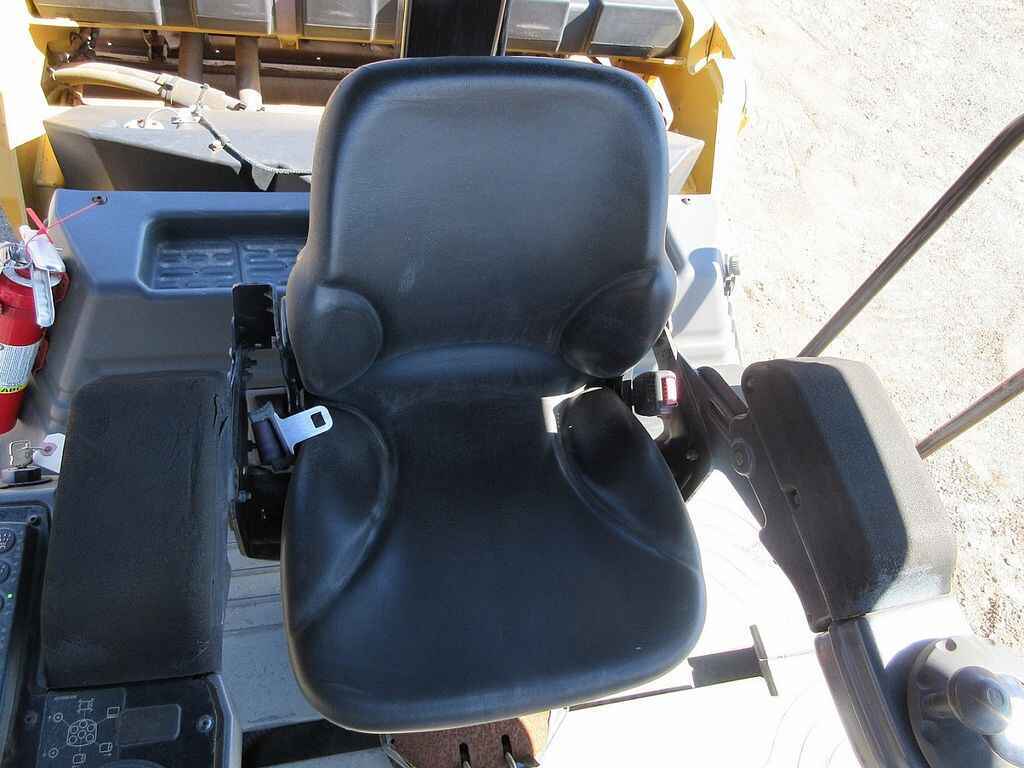

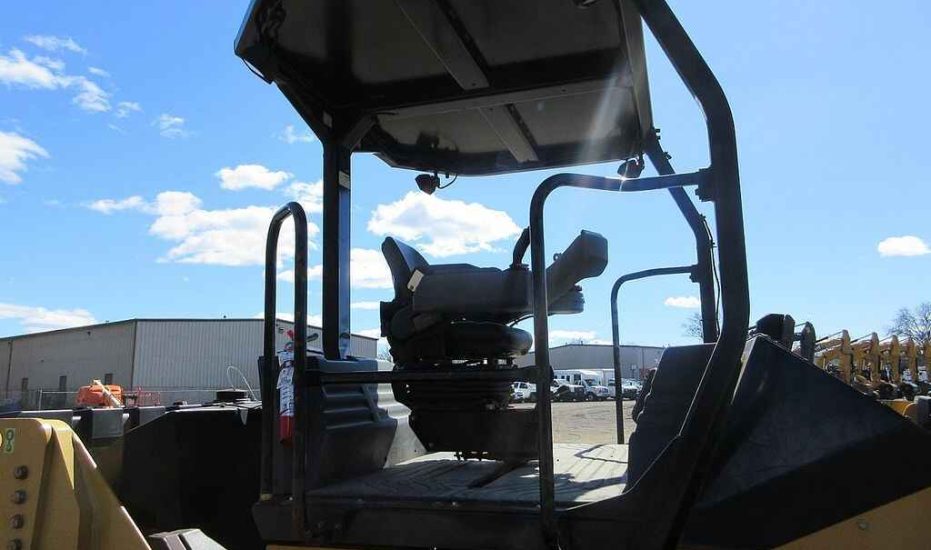

• Operator Station: 180° seat positioning with optional 360° seating
• Steering: Handwheel steering technology
