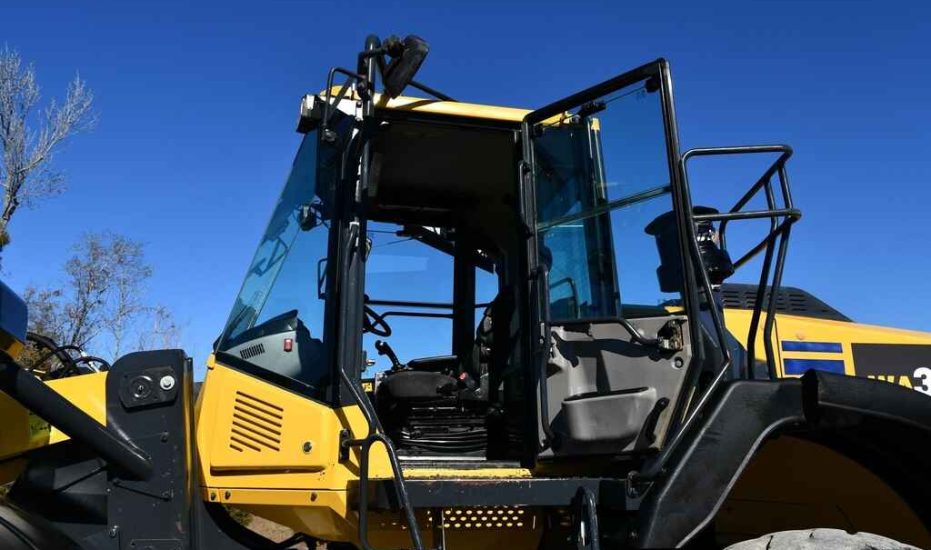

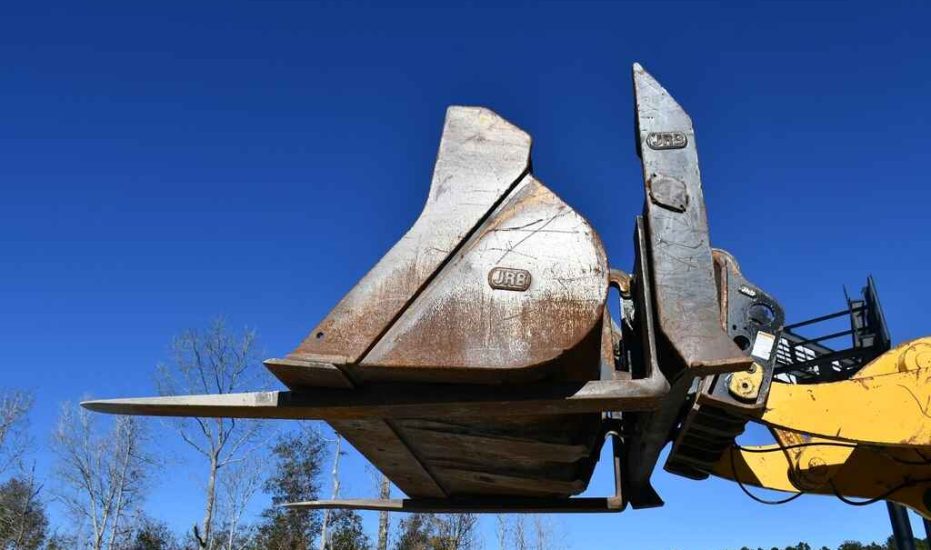

Cab, A/C, meter reads 7,095 hours, JRB Quick Hydraulic coupler, JRB 4.0 yd bucket, JRB FORKS, back up camera.

Bucket Specifications:

• Dump Clearance at Max Raise: 9.54 ft
• Bucket Capacity (Heaped): 4.32 yd³
• Bucket Capacity (Struck): 3.8 yd³
• Bucket Width: 9.54 ft
• Breakout Force: 35,494 lb

Dimensions:

• Ground Clearance: 1.5 ft
• Length with Bucket on Ground: 27.27 ft
• Width Over Tires: 9.13 ft
• Height to Top of Cab: 11.13 ft
• Wheelbase: 10.83 ft
• Hinge Pin – Max Height: 13.44 ft
• Reach at Max Lift and Dump: 3.78 ft

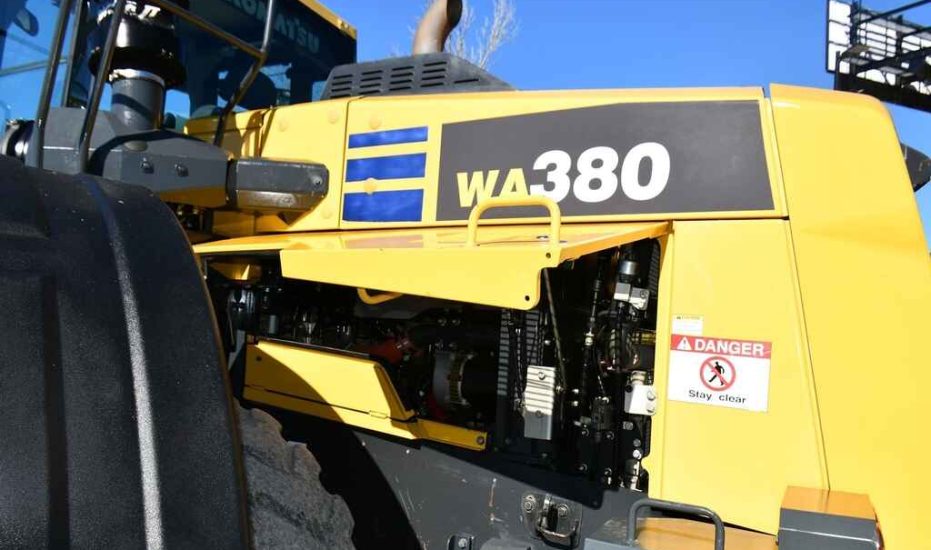

Engine Specifications:

• Engine Model: SAA6D107E-3
• Emissions Certification: EPA Tier 4
• Number of Cylinders: 6
• Net Power: 191 hp
• Gross Power: 192 hp
• Torque Measured @: 2,100 rpm
• Aspiration: Turbocharged
• Bore: 4.3 in
• Stroke: 4.9 in
• Displacement: 408.3 cu in
• Air Cleaner: Dry type with double elements
• Fuel Type: Diesel
• Diesel Fuel Tank Capacity (Standard Tank): 9.6 gal

Operational Specifications:

• Operating Weight: 40,686.4 lb
• Fuel Capacity: 79.3 gal
• Hydraulic System Fluid Capacity: 37.6 gal
• Engine Oil Fluid Capacity: 6.1 gal
• Cooling System Fluid Capacity: 16.1 gal
• Transmission Fluid Capacity: 14.3 gal
• Front Axle/Diff Fluid Capacity: 10.6 gal
• Rear Axle/Diff Fluid Capacity: 10.6 gal
• Static Tipping Weight: 34,039.4 lb
• Operating Voltage: 24V
• Alternator Supplied Amperage: 90 amps

Transmission Specifications:

• Transmission Type: Automatic
• Number of Forward Gears: 4
• Number of Reverse Gears: 4
• Max Speed – Forward: 23.3 mph
• Max Speed – Reverse: 24 mph

Hydraulic System Specifications:

• Pump Flow Capacity: 36.2 gal/min
• Raise Time: 5.9 sec
• Dump Time: 1.8 sec
• Lower Time: 3.3 sec
• Pump Type: Piston pump
• Relief Valve Pressure: 4,550 psi
