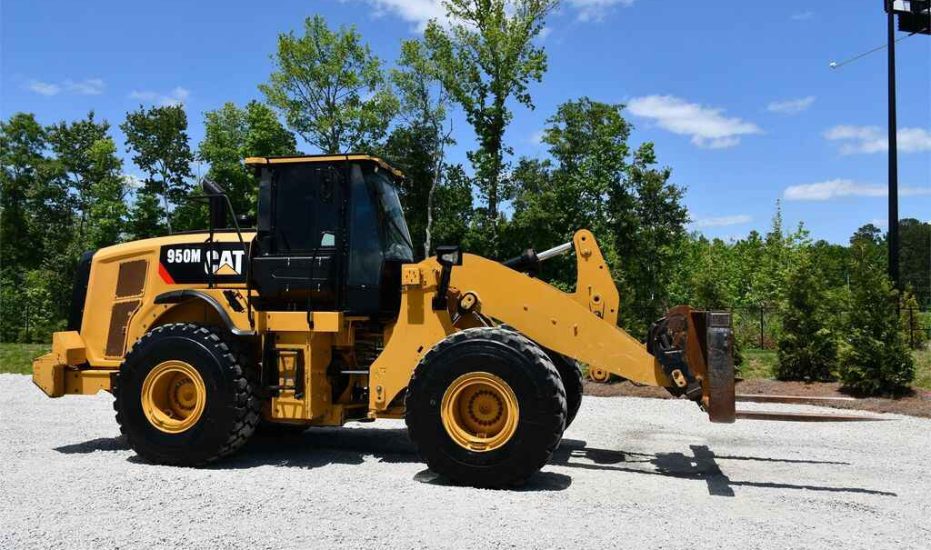

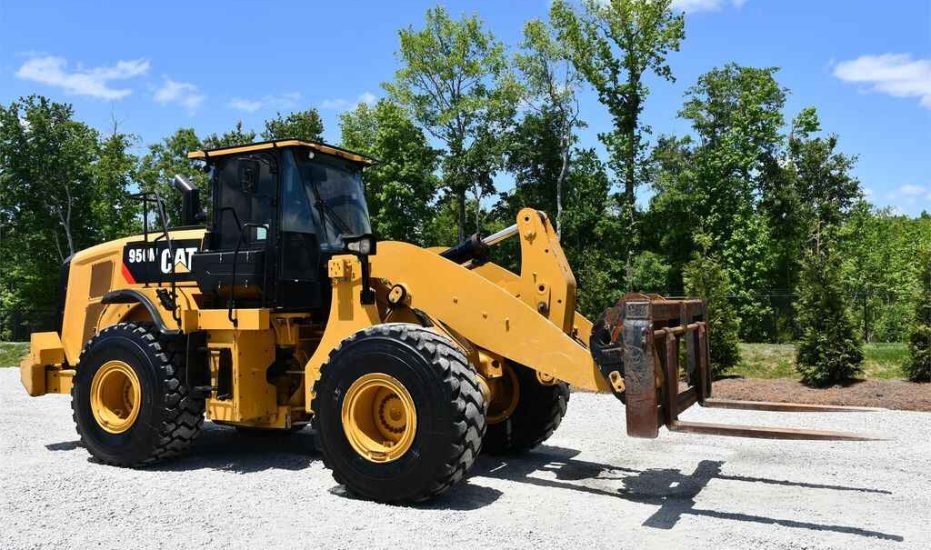

2017 Caterpillar 950M

2017
6518 hours

Overview

  • Engine
    Cat C7.1 ACERT
  • Category
  • Color
  • Serial
    TJ1S00277
  • Stock#
    1294JB
  • Inspection
    Inspected

Description

Cab,A/C, meter reads 6518 hours, CAT Fusion quick coupler, FORKS, GP bucket, back up camera.

Engine

  • Model: Cat C7.1 ACERT
  • Gross Power: 254 hp (187 kW)
  • Net Power: 232 hp (171 kW)
  • Displacement: 428 in³ (7.01 L)
  • Emissions: Meets Tier 4 Final/Stage IV standards

Weights

  • Operating Weight: 42,481 lbs (19,269 kg)

Performance

  • Bucket Capacities: 3.3 to 12.0 yd³ (2.5 to 9.2 m³)
  • Breakout Force: 40,320 lbf (179.4 kN)
  • Static Tipping Load (Full Turn): 25,962 lbs (11,776 kg)
  • Maximum Travel Speed: 24.5 mph (39.5 km/h)

Hydraulics

  • Implement Pump Type: Variable axial piston
  • Maximum Pump Output: 76 gal/min (286 L/min)
  • Maximum Operating Pressure: 4,250 psi (29,300 kPa)
  • Hydraulic Cycle Time (Raise): 5.1 seconds
  • Hydraulic Cycle Time (Dump): 1.5 seconds
  • Hydraulic Cycle Time (Lower): 2.3 seconds
  • Total Hydraulic Cycle Time: 8.9 seconds

Dimensions

  • Length (with Bucket on Ground): 25 ft 1 in (7.65 m)
  • Width (over Tires): 9 ft 3 in (2.82 m)
  • Height (to Top of Cab): 11 ft 4 in (3.45 m)
  • Ground Clearance: 1 ft 2 in (0.36 m)
  • Wheelbase: 11 ft 11 in (3.63 m)
  • Turning Radius (over Bucket): 20 ft 10 in (6.35 m)

Features

  • Transmission: 5-speed automatic with lock-up clutch torque converter
  • Axles: Front fixed, rear oscillating ±13 degrees
  • Brakes: Inboard wet disc service brakes; external caliper disc parking brakes
  • Operator Cab: ROPS/FOPS certified, sound-suppressed, pressurized
  • Steering: Load-sensing hydraulic steering system
  • Tires: 23.5R25 radial

Features

Interior
  • Air Conditioner
  • Heater
Comfort & Convenience
  • Radio
Our Price
$78,900
$69,000
Instant Saving: $9,900
