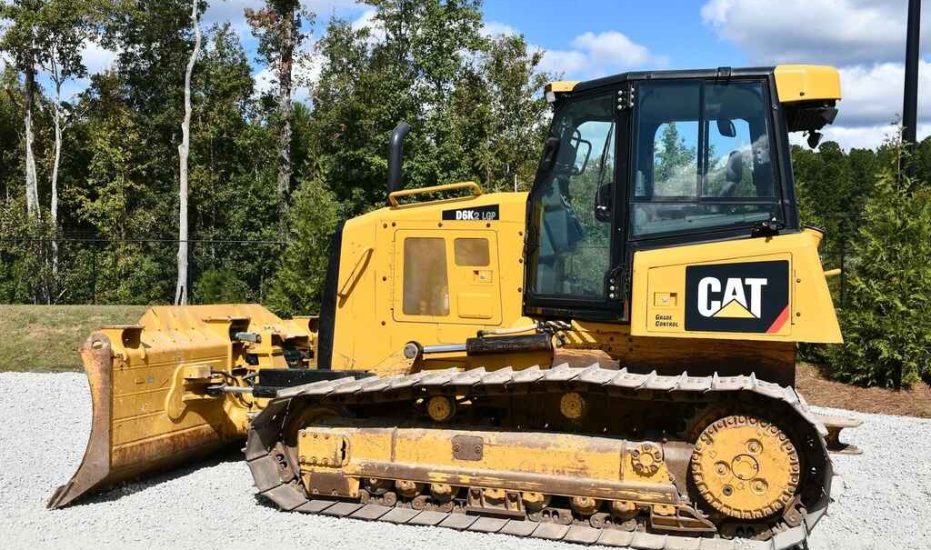

2017 Caterpillar D6K2 LGP

2017

3810 hours

Diesel

Save

Compare

Sold

Overview

Body

Constructions
Hours

3810
Fuel Type

Diesel
Year

2017

Engine

Cat® C4.4 ACERT™ with twin turbo
Category

Crawler Dozers
Color

Yellow
Serial

KJTR01161
Stock#

CA1524MT
Inspection

Inspected

Description

Cab, A/C meter reads 3810 hours, 6-way blade, grade control.

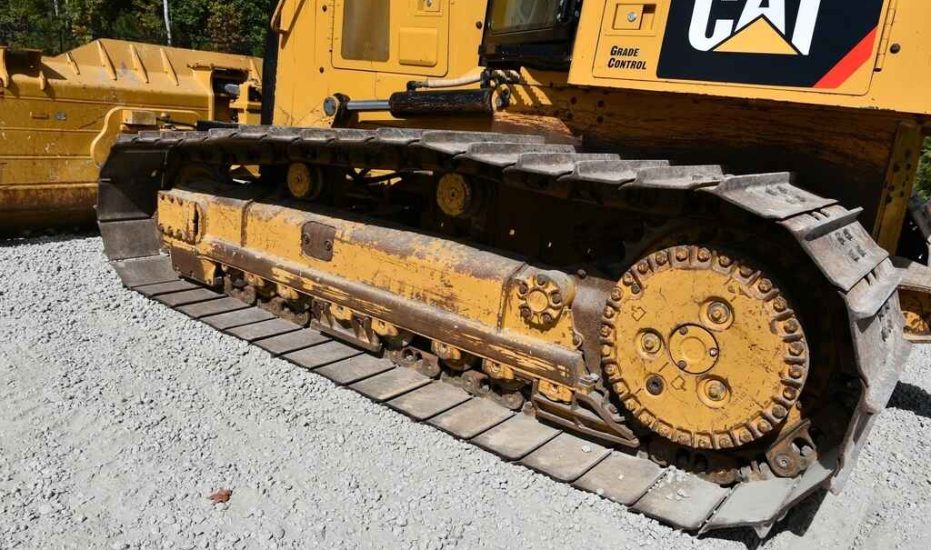

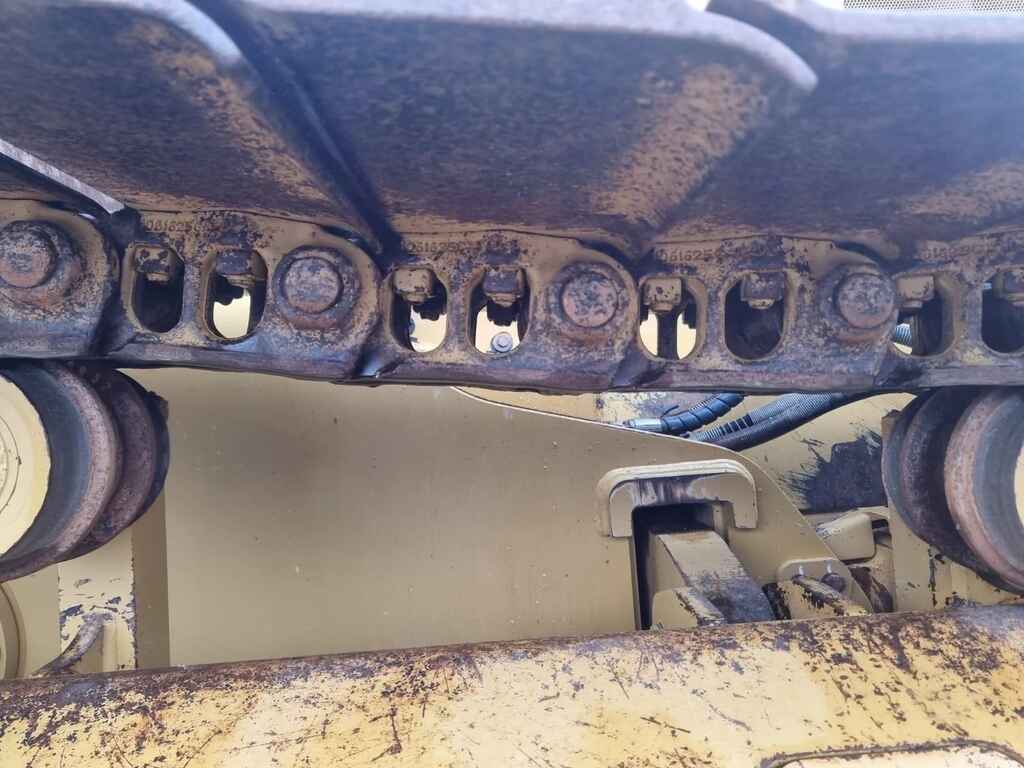

UNDERCARRIAGE
Shoe width
760mm

Shoe height
45mm, 25%

Shoes – any wear in trailing edge
Yes

Rail height
120mm , 10%

Any signs of link failure
No

Average diameter of pins and bushings
54mm, 15%

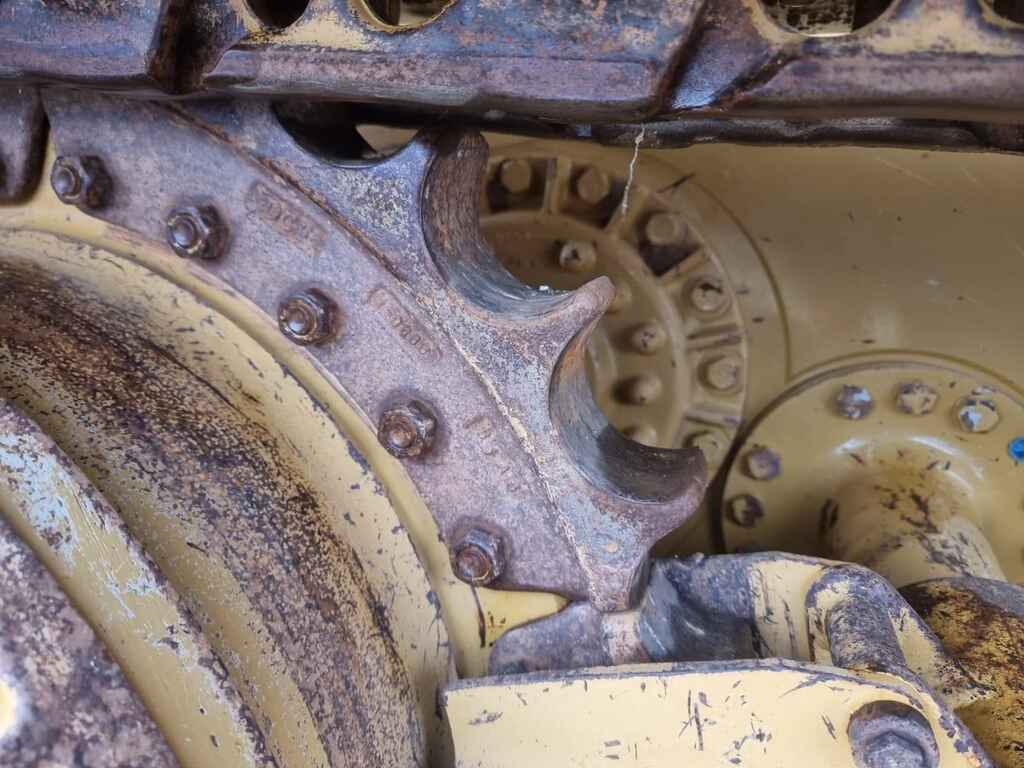

Sprockets
87mm gape, 13mm tips. 20%

UNDERCARRIAGE – IDLERS
Left side idler
75mm x 33mm x 42mm x 22mm, 30%

Right side ilder
75mm x 33mm x 42mm x 22mm, 30%

UNDERCARRIAGE – TOP ROLLERS
Left side 1st roller
154mm x 154mm, 30%

Left side 2nd roller
152mm x 152mm, 30%

Right side 1st roller
152mm x 152mm, 30%

Right side 2nd roller
153mm x 155mm, 30%

UNDERCARRIAGE – BOTTOM ROLLERS
Roller 1
Visual only, 20%

Roller 2
164mm & 163mm, 20%

Roller 3
161mm & 161mm, 20%

Roller 4
Visual only, 20%

Roller 5
158mm & 160mm, 20%

Roller 6
158mmm & 158mm, 20%

Roller 7
159mm & 158mm, 20%

Roller 8
Visual only, 20%

Engine

Model: Cat® C4.4 ACERT™ with twin turbo
Emissions: U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4
Net Power (Rated): 130 hp (97 kW)
Displacement: 268.5 in³ (4.4 L)

Weights

Operating Weight: 30,664 lbs (13,909 kg)

Performance

Transmission Type: Hydrostatic
Travel Speed (Forward/Reverse): 0-6.2 mph (0-10 km/h)
Drawbar Pull: 50,000 lbf (222.4 kN)

Undercarriage

Track Gauge: 79 in (2000 mm)
Width of Shoe: 30 in (760 mm)
Ground Contact Area: 6,912 in² (4.46 m²)
Ground Pressure: 4.44 psi (30.6 kPa)

Blade

Blade Type: VPAT (Variable Pitch Angle Tilt)
Blade Capacity: 4.98 yd³ (3.81 m³)
Blade Width Over End Bits: 12 ft (3,682 mm)

Dimensions

Length (with blade): 15.4 ft (4,700 mm)
Width (over tracks): 9.81 ft (2,990 mm)
Height: 9.25 ft (2,820 mm)
Ground Clearance: 1.25 ft (380 mm)

Service Refill Capacities

Fuel Tank: 69 gal (260 L)
DEF Tank: 5 gal (19 L)
Cooling System: 7.9 gal (30 L)
Engine Crankca

Features

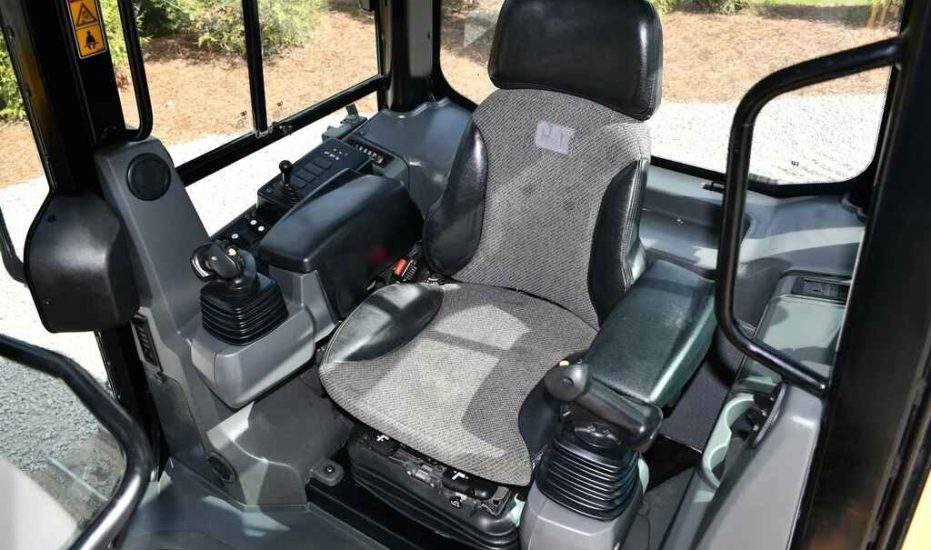

Interior

Air Conditioner
Heater

Comfort & Convenience

Radio
Rear Camera

Our Price

$115,000

$110,000

Instant Saving: $5,000
