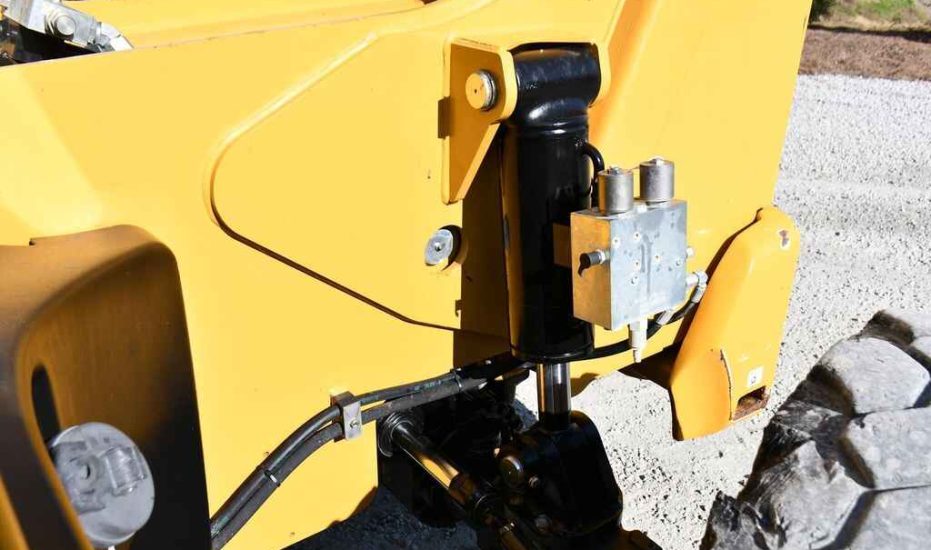

2017 CATERPILLAR, TL642D Lifts – Telehandlers, O’ROPS, meter reads 2422 hours, 6k capability, tires hold air, CRAB walk, original paint, 100 HP, 42 height reach, 30′ extendable reach

Engine

• Engine Model: Cat C3.4B
• Note: Meets U.S. EPA Tier 4 Final emission standards.
• Gross Power – Basic: 100 hp

Operational

• Operating Weight: 22,002 lb

Tires

• Standard: 370/75-28 Air Duraforce

Hydraulic System

• Auxiliary Hydraulic Flow: 18 gal/min
• Note: Auxiliary Hydraulic Circuit used for all attachments equipped with cylinders or other hydraulic components.
• Auxiliary Hydraulic Pressure: 3,481 psi
• System Operating Pressure: 3,770 psi
• Hydraulic Gear Pump: Single-section

Axles

• Type: Trunnion mounted planetary 55-degree steer axles.

Brakes

• Service Brakes: Inboard wet disc brakes on front and rear axles.
• Parking Brakes: Wet disc, spring applied hydraulic release on front axle.

Operating Specifications

• Rated Load Capacity: 6,500 lb
• Maximum Lift Height: 42 ft
• Maximum Forward Reach: 30 ft
• Top Travel Speed: 21 mph
• Frame Leveling: 10 degrees
• Turning Radius – Over Tires: 12 ft
• Drawbar Pull – Loaded: 19,783 lb-ft
• Capacity at Maximum Height: 6,500 lb
• Capacity at Maximum Reach: 700 lb

Service Refill Capacities

• Fuel Tank: 38.3 gal
• Hydraulic System: 40 gal
• Diesel Exhaust Fluid (DEF) Tank: 5.7 gal

Boom Performance

• Boom Up: 15 s
• Boom Down: 10.3 s
• Tele In: 9.5 s
• Tele Out: 16.3 s

Transmission Speeds

• Forward: 4 speed
• Reverse: 3 speed

Work Tools

• Hydraulic IT Coupler: Includes Auxiliary Electrics
• Pallet Forks – Option 1: [2] 1220 mm, 60 mm 125 mm ([2] 48 in, 2.36 in 5 in)
• Pallet Forks – Option 2: [2] 1220 mm, 60 mm 100 mm ([2] 48 in, 2.36 in 4 in)
• Lumber Forks – Option 1: [2] 1525 mm, 45 mm 180 mm ([2] 60 in, 1.75 in 7 in)
• Lumber Forks – Option 2: [2] 1829 mm, 50 mm 150 mm ([2] 72 in, 2 in 6 in)
• Cubing Forks: [2] 1220 mm, 50 mm 50 mm ([2] 48 in, 2 in 2 in)
• Carriages – Standard Tilt: 50 in
• Carriages – Wide Tilt: 72 in
• Carriages – Side Shift: 48 in
• Carriages – Standard Rotate: 50 in
• Carriages – Wide Rotate: 72 in
• Carriages – Swing: 100 degrees, 1829 mm, 2948 kg Capacity, 2268 kg Swung (100 degrees, 72 in, 6,500 lb Capacity, 5,000 lb Swung)
• Pallet Forks – Option 3: [2] 1525 mm, 60 mm 150 mm ([2] 60 in, 2.36 in 6 in)
• Carriages – Dual Fork Positioning: 50 in
