Specifications

Performance

• Maximum Lift Capacity: 10,000 lbs (4,536 kg)
• Maximum Lift Height: 53 ft 2 in (16.21 m)
• Maximum Forward Reach: 38 ft 9 in (11.81 m)
• Lift Capacity at Full Height: 4,000 lbs (1,814 kg)
• Lift Capacity at Maximum Reach: 1,400 lbs (635 kg)
• Frame Leveling: 10 degrees
• Drawbar Pull: 24,500 lbs (11,113 kg)
• Maximum Travel Speed: 20 mph (32.19 km/h)

Dimensions

• Overall Length (to fork face): 21 ft (6.4 m)
• Overall Width: 8 ft 6 in (2.59 m)
• Overall Height: 8 ft 4 in (2.54 m)
• Wheelbase: 10 ft (3.04 m)
• Ground Clearance: 1 ft 6 in (0.46 m)
• Outside Turning Radius: 13 ft 9 in (4.19 m)

Engine

• Manufacturer: Cummins
• Model: QSF3.8L Tier 4 Final
• Gross Power: 110 hp (82.06 kW)
• Maximum Engine RPM: 1,500 rpm
• Fuel Tank Capacity: 35 gal (132.49 L)

Hydraulic System

• System Type: Variable flow, load-sensing piston pump
• System Pressure: 3,100 psi (21,375 kPa)
• Hydraulic Reservoir Capacity: 60 gal (227 L)

Transmission

• Type: Powershift
• Number of Forward Gears: 4
• Number of Reverse Gears: 3

Axles

• Front Axle: High bias, limited slip
• Rear Axle: Oscillating

Brakes

• Service Brakes: Wet multi-disc

Tires

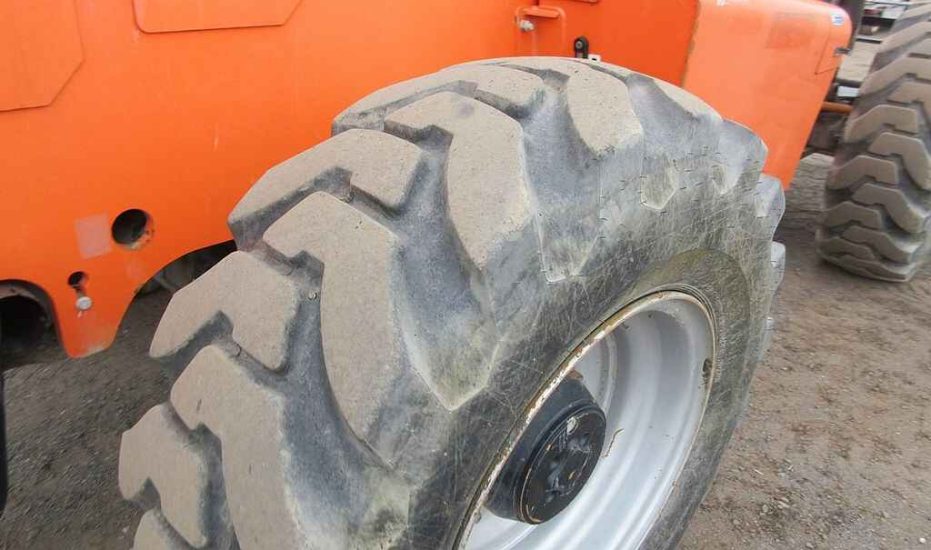

• Size: 400/75-28

Features

• Single joystick and integrated armrest: Reduces operator fatigue
• Optional air conditioning: Enhances operator comfort
• Stabil-Trak rear axle stabilization system: Increases operator confidence when placing a load
• Optional 74 hp engine: Does not require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
