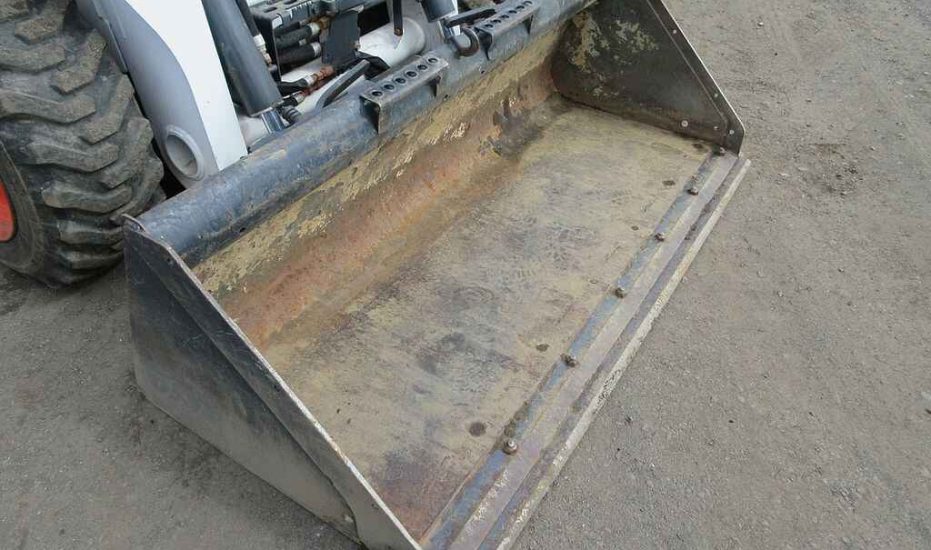

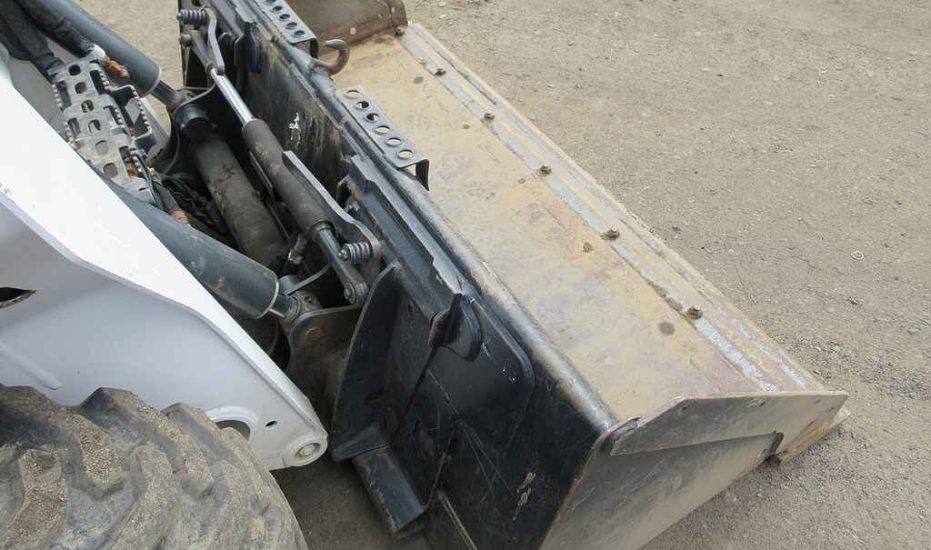

4 cyl turbo diesel, cab with heat, 2 speed travel, aux hyd, Power Bob-Tach, GP bucket with BOCE, meter reads 692 hours, S/N AHGM14629

Engine:

• Engine Model: Bobcat 4-cylinder diesel
• Gross Power: 70 hp (52 kW)
• Net Power: 65 hp (48.5 kW)
• Engine Type: 4-Cylinder, Diesel
• Engine Displacement: 168 cu in (2.75 L)
• Rated Engine Speed: 2,300 rpm
• Fuel Tank Capacity: 24.5 gal (92.8 L)
• Cooling System Capacity: 3.8 gal (14.4 L)
• Hydraulic Tank Capacity: 13.5 gal (51 L)

Dimensions:

• Operating Weight: 7,840 lbs (3,555 kg)
• Length (with bucket): 11.2 ft (3,413 mm)
• Width (with bucket): 5.3 ft (1,616 mm)
• Height to Top of Cab: 6.3 ft (1,915 mm)
• Ground Clearance: 8.0 in (203 mm)
• Width Over Tires: 5.3 ft (1,616 mm)
• Wheelbase: 3.3 ft (1,004 mm)
• Length Without Bucket: 8.3 ft (2,531 mm)
• Height to Bucket Pin: 10.5 ft (3,174 mm)
• Rear Overhang: 4.4 ft (1,336 mm)

Performance:

• Rated Operating Capacity: 1,750 lbs (794 kg)
• Tipping Load: 3,500 lbs (1,588 kg)
• Lift Height: 10.5 ft (3,174 mm)
• Max Reach at Full Lift Height: 3.1 ft (948 mm)
• Max Reach with Bucket: 2.1 ft (635 mm)
• Max Dump Height: 8.4 ft (2,561 mm)
• Dump Angle: 40°
• Bucket Rollback (at ground): 30°
• Rollback at Maximum Lift Height: 92°
• Travel Speed (Low): 5.7 mph (9.2 km/h)
• Travel Speed (High): 11.6 mph (18.7 km/h)
• Drawbar Pull: 4,700 lbs (2,130 kg)
• Hydraulic Flow: 23.5 gal/min (89 L/min)
• Hydraulic Pressure: 3,300 psi (22,950 kPa)

Hydraulic System:

• Auxiliary Hydraulic Flow (Standard): 23.5 gal/min (89 L/min)
• Auxiliary Hydraulic Pressure: 3,300 psi (22,950 kPa)
• Lift Cylinder Bore: 2.5 in (64 mm)
• Tilt Cylinder Bore: 2.5 in (64 mm)

Undercarriage:

• Tire Size: 10-16.5
• Track Width: 12 in (305 mm)
• Ground Pressure: 4.4 psi (30.4 kPa)
• Number of Wheels: 4
• Wheelbase: 3.3 ft (1,004 mm)

Capacities:

• Fuel Tank Capacity: 24.5 gal (92.8 L)
• Hydraulic Reservoir Capacity: 13.5 gal (51 L)
• Hydraulic System Fluid Capacity: 23.5 gal (89 L)
• Engine Oil Capacity: 3.7 qt (3.5 L)

Cab Features:

• ROPS: ISO 3471:2008
• FOPS: ISO 3449:2005 Level II
• Operator Cab: Standard
• Heating System: Optional
• Air Conditioning: Optional
• Joystick Controls: Standard
• Seats: Adjustable
• Cab Mounting: Isolated

Brakes and Safety:

• Brakes: Hydraulic wet disc brakes
• Parking Brake: Automatic
• Safety Features:
  • Backup alarm
  • Seat belt interlock
  • Roll-over protection (ROPS)

Additional Features:

• Lift Arm Path: Vertical
• Auxiliary Hydraulics: Standard
• Engine Shutdown: Optional
• Machine Control System: Optional
