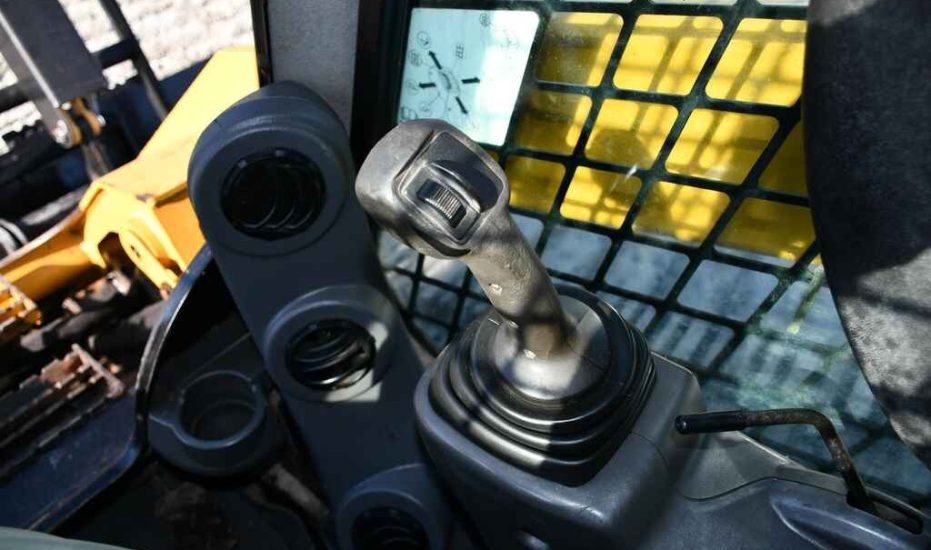

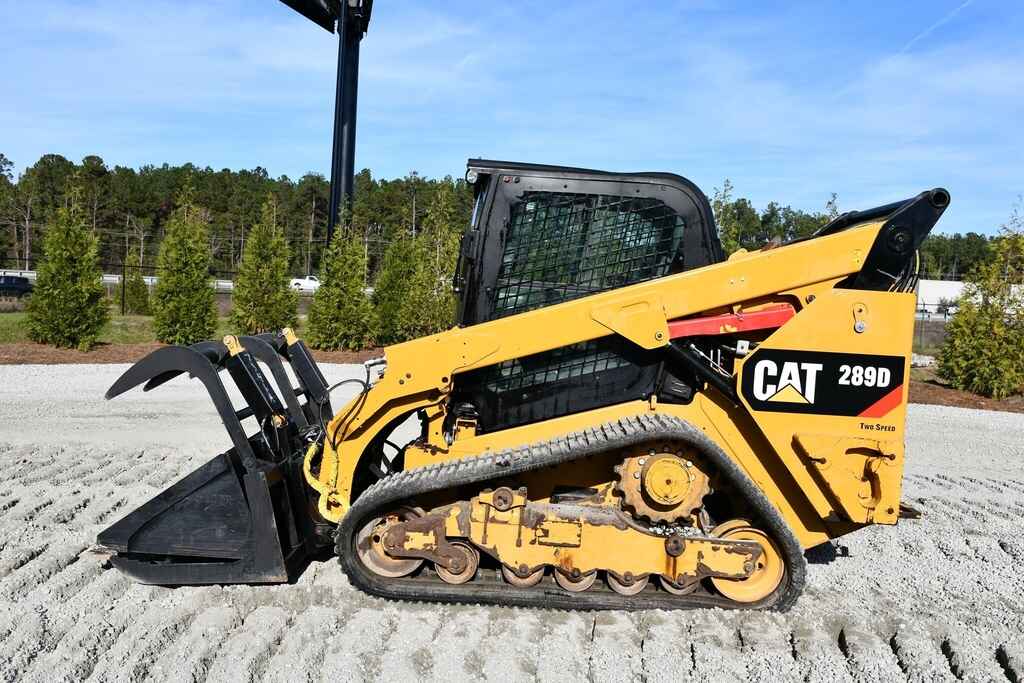

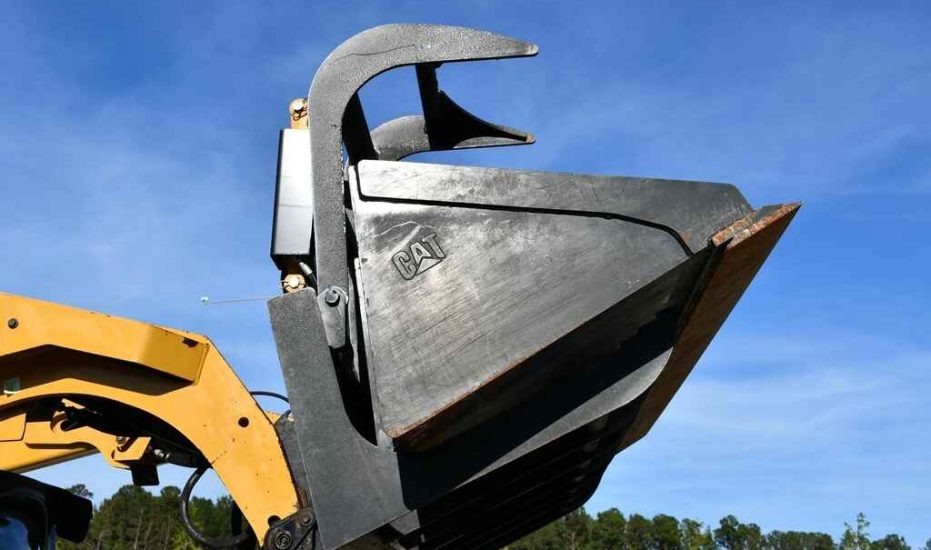

Cab, A/C, radio, meter reads 2,634 hours, Quick Coupler, CAT 72-inch grading bucket, 72-inch Grapple bucket

ZERO SALES TAX FOR OUT OF STATE SALES! ZERO DEALERSHIP FEES! ZERO NONSENSE!

Dimensions

• Width Over Tracks: 6.34 ft
• Height To Top Of Cab: 6.94 ft
• Ground Clearance: 8.9 in
• Clearance At Max Lift and Dump: 7.84 ft
• Reach At Max Lift and Dump: 2.5 ft
• Departure Angle: 33 degrees
• Dump Angle: 51 degrees
• Length – Track On Ground: 64.2 in
• Length – With Bucket On Ground: 146.2 in
• Length – Without Bucket: 117.9 in
• Length With Bucket: 12.19 ft
• Bucket Pin Height – Carry Position: 7.5 in
• Bucket Pin Height – Maximum Lift: 10.43 ft
• Bucket Pin Reach – Maximum Lift: 14.5 in
• Clearance At Maximum Lift And Dump: 94 in
• Turning Radius From Center – Machine Rear: 70.7 in
• Vehicle Width (400 mm/15.7 in Tracks): 76 in
• Vehicle Width (450 mm/17.7 in Tracks): 78 in
• Length With Out Bucket: 9.83 ft
• Maximum Dump Angle: 51 degrees
• Maximum Overall Height: 158.1 in
• Maximum Reach – With Arms Parallel To Ground: 50 in
• Overall Height: 13.18 ft
• Overall Length – Track: 83.8 in
• Overall Track Length: 6.99 ft
• Rack Back Angle – Maximum Height: 84 degrees
• Reach – Maximum Lift/Dump: 30 in
• Turning Radius From Center – Bucket: 88.8 in
• Turning Radius From Center – Coupler: 55.5 in
• Length Of Track On Ground: 5.35 ft

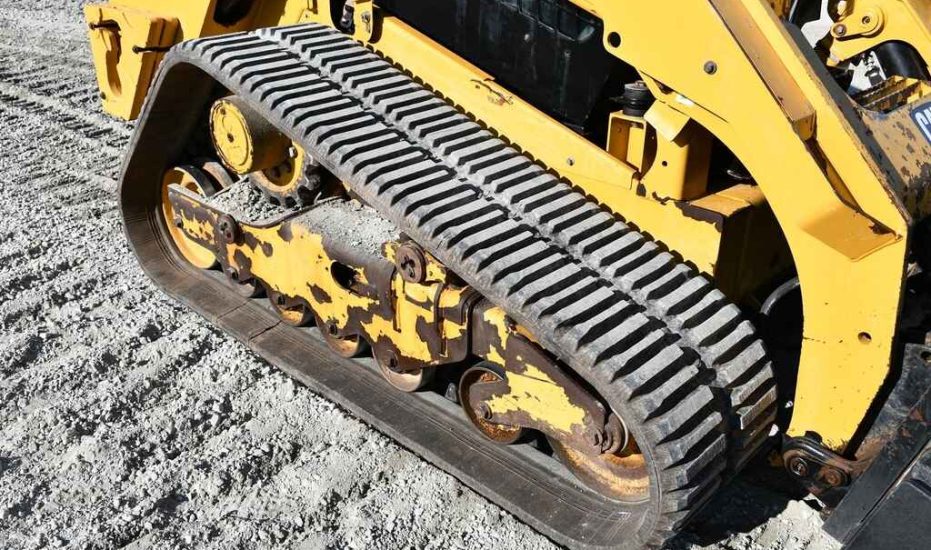

Undercarriage

• Ground Pressure: 5.24 psi
• Ground Contact Area: 2015.01 in²

Engine Specifications

• Engine Make: DIT
• Engine Model: Cat C3.3B
• Gross Power: 74.3 hp
• Net Power: 72.9 hp
• Peak Torque: 195.5 lb-ft
• Torque Measured @: 1500 rpm
• Displacement: 203 cu in
• Bore: 3.7 in
• Stroke: 4.7 in
• Net Power – Iso 9249: 73.7 hp
• Gross Power – Sae J1995: 74.3 hp
• Engine Model: Cat C3.3B DIT (turbo)
• Net Power – Sae 1349: 72.9 hp
