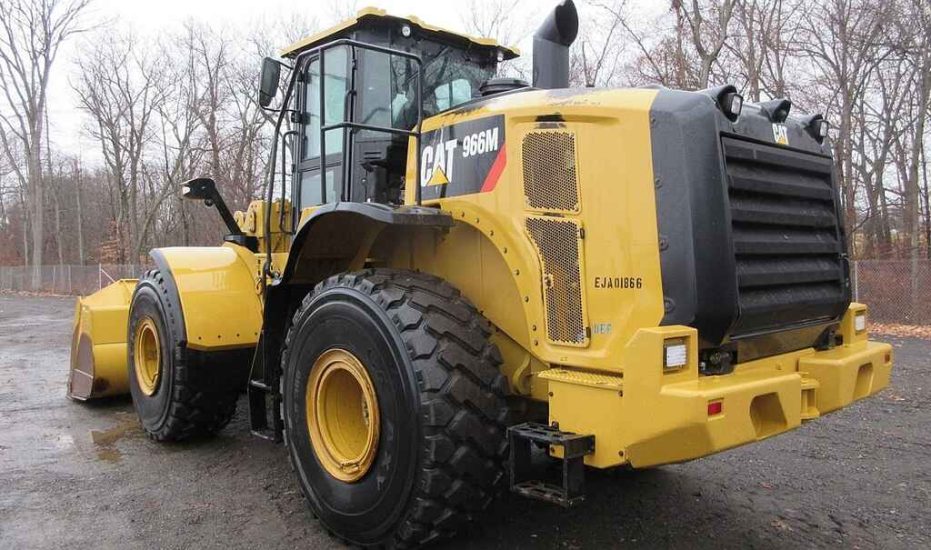

CATERPILLAR C9.3 6 CYL TURBO DIESEL, CAB WITH HEAT, A/C, STEREO, AUTOSHIFT, RIDE CONTROL, JOYSTICK STEER, REARVIEW CAMERA, NEW AND UNUSED 26.5R25 GALAXY RADIAL RUBBER, AUTOLUBE, PLUMBED FOR HYD COUPLER, GP BUCKET WITH BOCE, METER READS 10371 HOURS, 1780 IDLE HOURS, 4556 NEUTRAL HOURS, S/N CAT0966MKEJA01866

Dimensions – High Lift

• Ground Clearance: 1.42 ft (43.3 cm)
• Wheel Base: 11.67 ft (355.7 cm)
• Centerline Of Rear Axle To Edge Of Counterweight: 8.17 ft (249.6 cm)
• Centerline Of Rear Axle To Hitch: 5.83 ft (177.8 cm)
• Height – Top Of Exhaust Pipe: 11.58 ft (353.8 cm)
• Height – Top Of Hood: 9.25 ft (281.9 cm)
• Height – Top Of Rops: 11.75 ft (358.1 cm)
• Hinge Pin Height At Carry: 2.58 ft (78.5 cm)
• Hinge Pin Height At Maximum Lift: 15.75 ft (479.2 cm)
• Lift Arm Clearance At Maximum Lift: 13.58 ft (414.1 cm)
• Maximum Width Over Tires: 9.83 ft (300.7 cm)
• Overall Length – Without Bucket: 26.58 ft (810.6 cm)
• Rack Back – Carry Height: 49 degrees
• Rack Back – Maximum Lift: 71 degrees
• Rack Back At Ground: 39 degrees
• Tread Width: 7.33 ft (223.5 cm)

Note: All dimensions are approximate and based on L3 XHA2 tires.

Dimensions – Standard Lift

• Ground Clearance: 1.42 ft (43.3 cm)
• Rack Back – Maximum Lift: 62 degrees
• Centerline Of Rear Axle To Edge Of Counterweight: 7.17 ft (218.1 cm)
• Lift Arm Clearance At Maximum Lift: 11.92 ft (363.2 cm)
• Centerline Of Rear Axle To Hitch: 5.83 ft (177.8 cm)
• Maximum Width Over Tires: 9.83 ft (300.7 cm)
• Tread Width: 7.33 ft (223.5 cm)
• Height – Top Of Exhaust Pipe: 11.58 ft (353.8 cm)
• Height – Top Of Hood: 9.25 ft (281.9 cm)
• Overall Length – Without Bucket: 23.92 ft (729.9 cm)
• Height – Top Of Rops: 11.75 ft (358.1 cm)
• Rack Back At Ground: 42 degrees
• Hinge Pin Height At Carry: 2.08 ft (63.4 cm)
• Rack Back – Carry Height: 50 degrees
• Wheel Base: 11.67 ft (355.7 cm)
• Hinge Pin Height At Maximum Lift: 13.92 ft (424.4 cm)

Note: All dimensions are approximate and based on L3 XHA2 tires.

Engine Specifications

• Displacement: 568 cu in (9.3 L)
• Bore: 4.6 in (11.7 cm)
• Stroke: 5.9 in (15.0 cm)
• Net Power (ISO 9249): 276 hp
• Engine Model: Cat® C9.3 ACERT®

Other Specifications

• Air Conditioning System Note: The system contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). It holds 1.6 kg of refrigerant with a CO2 equivalent of 2.288 metric tonnes.

Peak Gross Torque (1,200 rpm)

• SAE J1995: 1,179 lb-ft (1,597.2 Nm)
• ISO 14396: 1,166 lb-ft (1,577.6 Nm)

Maximum Net Power (1,700 rpm)

• ISO 9249: 276 hp (206.3 kW)
• SAE J1349: 276 hp (206.3 kW)

Maximum Net Torque (1,000 rpm):

• 1,126 lb-ft (1,523.5 Nm)
