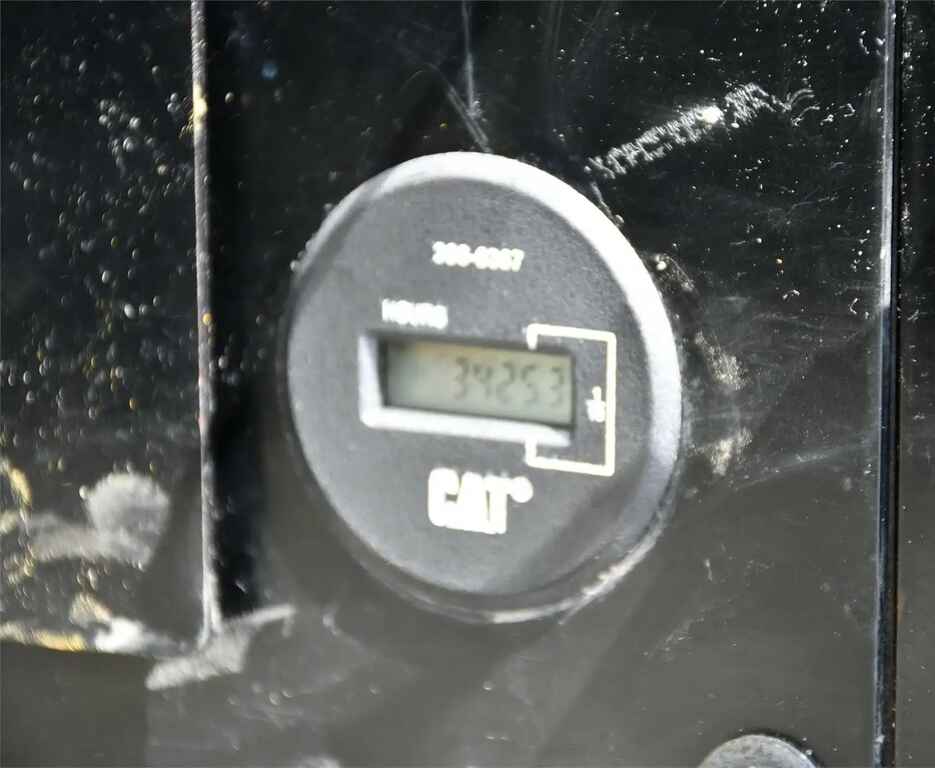

Cab,A/C, meter reads 3425 hours, quick coupler, new 36 inch bucket, rubber shoe inserts. Incredibly clean 308cr E2. Almost showroom condition. Very clean and ready to work. Owner upgrading. Comes with three buckets. 12″, 24″ and 36″.

Engine

• Model: Cat C3.3B
• Gross Power: 66.6 hp (49.7 kW)
• Net Power: 65 hp (48.5 kW)
• Displacement: 203.2 in³ (3.33 L)
• Emissions: Meets U.S. EPA Tier 4 Final and EU Stage IIIB emission standards

Weights

• Operating Weight: 18,519 lbs (8,400 kg)

Performance

• Maximum Digging Depth: 13 ft 7.5 in (4,150 mm)
• Maximum Reach at Ground Level: 25 ft 6.5 in (7,780 mm)
• Bucket Digging Force: 13,534 lbf (60.2 kN)
• Stick Digging Force (Standard): 9,015 lbf (40.1 kN)
• Stick Digging Force (Long): 7,891 lbf (35.1 kN)
• Travel Speed (High): 3.2 mph (5.1 km/h)
• Travel Speed (Low): 1.8 mph (2.8 km/h)

Hydraulics

• Main System – Maximum Flow: 39.6 gal/min (150 L/min)
• Auxiliary Circuit – Primary (186 bar/2,734 psi): 33.8 gal/min (128 L/min)
• Auxiliary Circuit – Secondary (174 bar/2,524 psi): 16.9 gal/min (64 L/min)
• Operating Pressure – Equipment: 4,061 psi (28,000 kPa)
• Operating Pressure – Travel: 4,061 psi (28,000 kPa)
• Operating Pressure – Swing: 3,481 psi (24,000 kPa)

Dimensions

• Overall Length: 21 ft 6 in (6,550 mm)
• Overall Width: 7 ft 7 in (2,320 mm)
• Overall Height: 8 ft 4 in (2,540 mm)
• Tail Swing Radius: 5 ft 3 in (1,600 mm)
• Ground Clearance: 1 ft 1 in (335 mm)

Features

• Compact Radius Design: Allows operation in confined spaces
• Operator Environment: Spacious cab with ergonomic controls
• Hydraulic System: Load sensing hydraulics with variable displacement piston pump
• Auxiliary Hydraulics: Standard with quick connectors
• Blade: Width of 7 ft 7 in (2,320 mm) and height of 17.8 in (452 mm)
