PRICE FIRM NO TAX OR FEES

6M/1500Hr FULL Warranty!

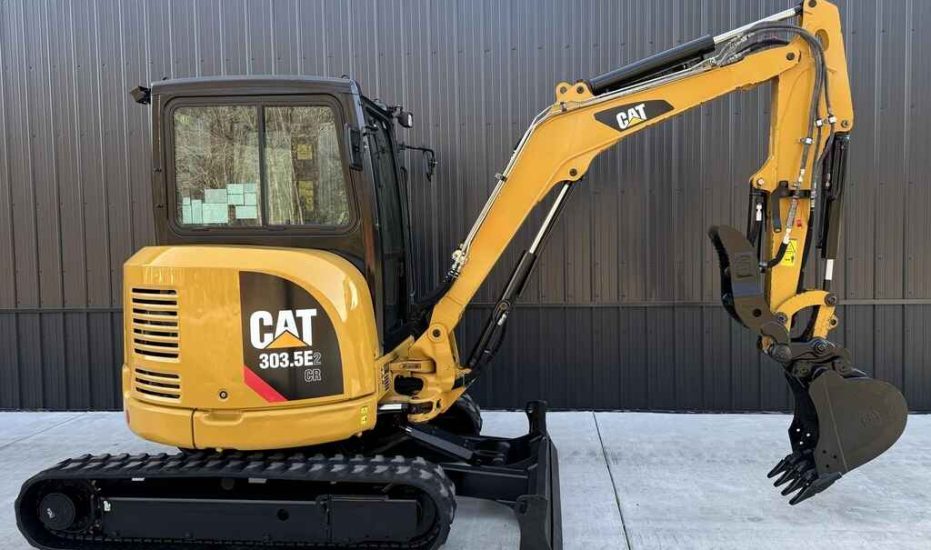

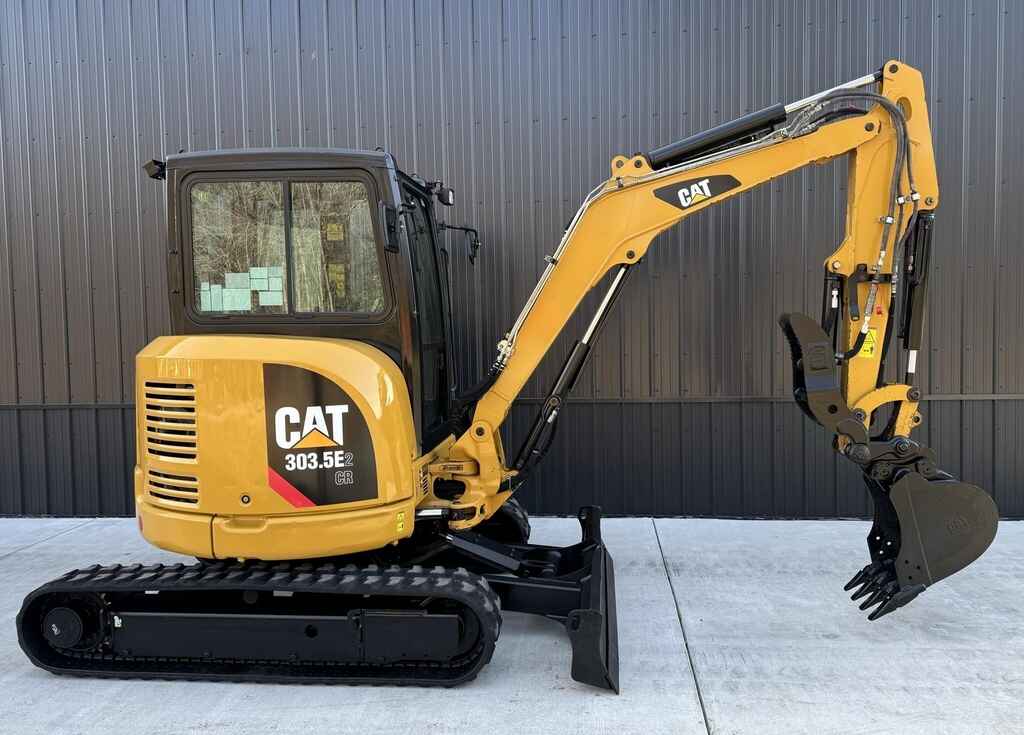

Excellent condition and LIGHTLY used. Just completely cleaned, greased, & looked over. Photos just taken. Delivery Available!
– 1,451 LIGHTLY Used Hours
– Enclosed HEAT/AC/RADIO
– Hydraulic Coupler
– 24” Tooth Bucket
– Hydraulic Thumb
– Rear Camera
– 8,200 Lbs
– 25 HP
– NO LEAKS
– NO ISSUES
MACHINE IS TIGHT & READY TO WORK

Swing System

• Machine Swing Speed: 10 rpm
• Swing – Right: 50 degrees

Engine

• Gross Power: 24.8 hp
• Net Power: 23.5 hp
• Displacement: 104 cu in
• Bore: 3.4 in
• Stroke: 3.6 in
• Net Power – ISO 9249: 23.5 hp
• Engine Model: Cat C1.7
• Rated Net Power – ISO 9249: 23.5 hp
• Note: Cat C1.7 engine meets U.S. EPA Tier 4 Final/EU Stage IIIB emission standards.

Operational

• Operating Weight: 8209 lb
  • Note: Weight includes rubber tracks, bucket, operator, full fuel, and auxiliary lines.
• Operating Weight – With Cab: 8209 lb
• Operating Weight – With Canopy: 7803 lb

Blade

• Height: 13 in
• Width: 5.9 ft
• Lift Height: 16 in

Hydraulic System

• Pump Flow: 26.4 gal/min
  • Note: Load sensing hydraulics with variable displacement piston pump.
• Operating Pressure – Swing: 3132 psi
• Operating Pressure – Equipment: 3553 psi
• Operating Pressure – Travel: 3553 psi
• Auxiliary Circuit – Primary: 18.5 gal/min
• Auxiliary Circuit – Secondary: 6.6 gal/min

Digging Force

• Digging Force – Stick – Standard: 4249 lb
• Digging Force – Stick – Long: 3799 lb
• Digging Force – Bucket: 7419 lb

Operating Specifications

• Maximum Dig Depth: 125 in

Service Refill Capacities

• Cooling System: 1.5 gal
• Fuel Tank: 12.2 gal
• Hydraulic Tank: 11.2 gal
• Hydraulic System: 17.2 gal
• Engine Oil: 1.8 gal

Travel System

• Maximum Traction Force – High Speed: 3822 lb
• Maximum Traction Force – Low Speed: 6992 lb
• Travel Speed – High: 2.9 mph
• Travel Speed – Low: 2 mph
• Ground Pressure: 4.6 psi
