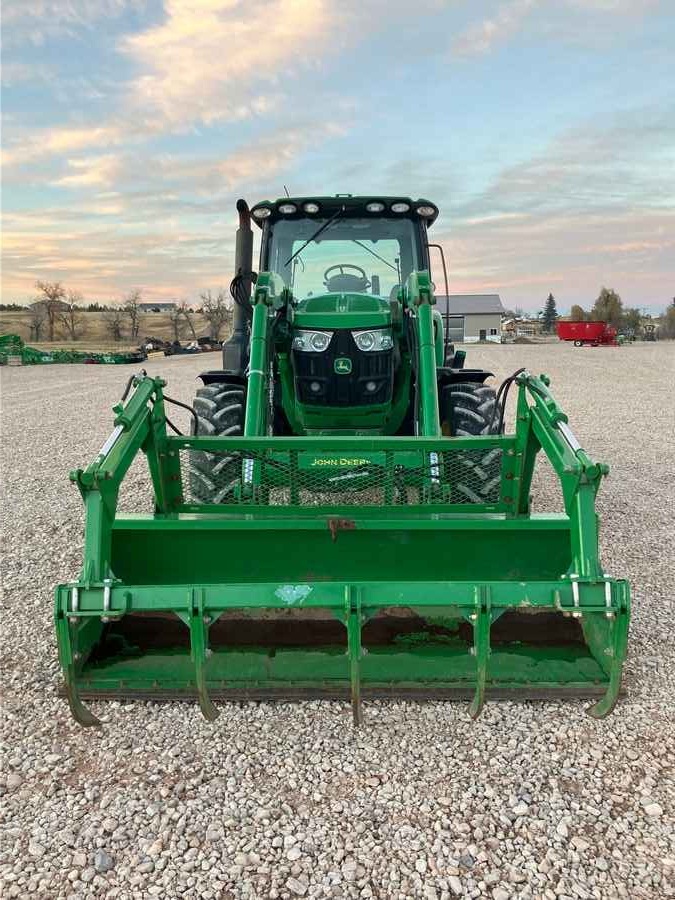

2020 John Deere 6145R, MFWD, 145HP, 3495 hours, 6 cylinder engine, 20 speed power quad plus transmission with LH reverser, John Deere 640R SL loader, 8′ bucket, 5 tine grapple, joystick with thumb control, 3 remotes, 540/1000 pto, 3pt, good rubber, nice tractor!

Key Specs

Engine Type

• Engine: Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with four valves in head
• Engine Family: NJDXL06.8324
• Engine Displacement: 6.8 L (415 cu in)
• Rated Speed: 2100 rpm
• Aspiration: Turbocharged, variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
• Emission Level: Final Tier 4
• After Treatment Type: DOC/DPF/SCR
• Maximum Engine Power (ISO): 117 kW (160 hp) at max engine speed
• Rated Engine Power (ISO): 108 kW (145 hp) at rated engine speed
• Rated PTO Power (SAE): 84 kW (113 hp)
• Engine Peak Torque: 677 Nm (499 lb-ft) at 1600 rpm
• PTO Torque Rise: 40 percent
• Intelligent Power Management (IPM): Additional engine power (40 hp) at 2100 rpm, 10% power boost

Transmission & Hydraulic System

• Transmission Type: Standard: Infinitely variable transmission (IVT™), 0.05-42 km/h (0.03-26 mph), Optional: IVT, 0.05-50 km/h (0.03-31 mph), 24-speed AutoQuad™ PLUS ECO (40K/50K)
• Hydraulic Pump Rated Output: Standard: 45 cc pump, 114 L/min (30 gpm); Optional: 60 cc pump, 155 L/min (41 gpm)
• Available Flow at a Single Rear SCV: 100 L/min (26 gpm)
• Rear Hitch Category (SAE): Category 3/3N, 4170 kg (9193 lb)
• Rear Axle Differential Lock: Electrohydraulic
• Joystick SCV Control: Available
• SCV Control: Standard: Mechanical, Optional: Electronic

Dimensions & Weight

• Wheelbase (MFWD): 2765 mm (108.8 in)
• Overall Width: 1662 mm (65.4 in)
• Overall Length: 4946 mm (194.7 in)
• Overall Height: 2976 mm (117.2 in)
• Base Machine Weight: 6900 kg (15,212 lb)
• Maximum Permissible Weight: 11,250 kg (24,802 lb)
• Front Axle Center: 528 mm (20.8 in)
• Crankcase Oil Volume: 23.5 L (6.2 U.S. gal)
• Fuel Tank Capacity: 270 L (71.3 U.S. gal)
• DEF Tank Capacity: 16 L (4.2 U.S. gal)
• Cooling System Capacity: 28 L (7.4 U.S. gal)
• Transmission-Hydraulic System Capacity (IVT): 62 L (16.4 U.S. gal)
• Transmission-Hydraulic System Capacity (AutoQuad): 63 L (16.6 U.S. gal)
• Transmission-Hydraulic System Capacity (DirectDrive ECO): 75 L (19.8 U.S. gal)

Lift Capacity & Loader Options

• Loader Models: 640R, 660R
• 640R Lift Capacity at Full Height: 2181 kg (4808 lb)
• 660R Lift Capacity at Full Height: 2586 kg (5701 lb)
• 640R Maximum Lift Height: 4151 mm (163 in)
• 660R Maximum Lift Height: 4520 mm (178 in)

Rear & Front PTO

• Rear PTO (Category 3N):
  • PTO Speed: 1000 rpm (Engine RPM: 1967 rpm)
  • PTO Actuation: Electrical modulation
  • Electric Power: Seven-pin socket (Optional: Three-pin and ISOBUS socket)
  • Standard Lift Capacity at Hook Ends: 3300 kg (7275 lb)
• Front PTO:
  • Type: 1000 rpm, clockwise rotation
  • PTO Speed: Engine at PTO speed (1000 rpm: 1969 rpm)

Electrical System & Operator Station

• Alternator Size: Standard: 200 amp, Optional: 250 amp
• Battery Options: 12 V, Total Cold Cranking Amps: 1230 CCA (1400 CCA with cold weather package or IVT)
• Seat Swivel: Left-hand CommandARM: 7.5 degrees, Right-hand CommandARM: 30 degrees
• Cab Suspension: Optional Adaptive Hydraulic Cab Suspension Plus (HCS Plus)
• Display: Standard: 213.4 mm (8.4 in) CommandCenter™ display, Optional: 254 mm (10 in)
• dB(A) Rating: 71 dB
• Cab Glass Area: 6.11 m² (65.77 sq ft)
• Inner Cab Volume: 3.33 m³ (117.59 cu ft)

Serviceability

• Engine Oil Change Interval: 750 hours
• Hydraulic/Transmission Oil Change Interval: 1500 hours
• Engine Coolant Change Interval: 6000 hours

Tires & Steering

• Tires (Rear): 480/80R42 R1/R1W Radial
• Wheel Tread Range:
  • MFWD: 1524-2235 mm (60-88 in)
  • TLS: 1524-2235 mm (60-88 in)
• Front Axle Differential Lock: MFWD: Limited slip, TLS: Limited slip, TLS with brakes: Full-locking electrohydraulic
• Front Axle: Limited slip
