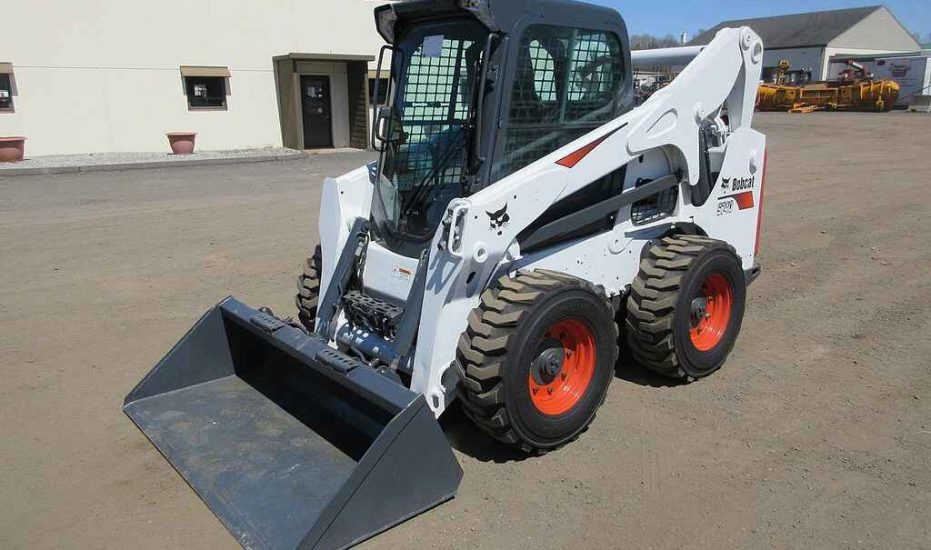

4 cyl Bobcat turbo diesel, cab with heat, A/C, aux hyd, GP bucket, meter reads 924 hours, S/N B3BT19096

Engine:

• Engine Model: Bobcat 4-Cylinder Diesel
• Gross Power: 74.3 hp (55.4 kW)
• Net Power: 70 hp (52.2 kW)
• Engine Displacement: 2.4 L (146 cu in)
• Engine Type: 4-Cylinder, Diesel
• Rated Engine Speed: 2,700 rpm
• Fuel Tank Capacity: 23.8 gal (90 L)
• Cooling System Capacity: 4.8 gal (18.1 L)
• Hydraulic Tank Capacity: 15.3 gal (58 L)

Dimensions:

• Operating Weight: 7,767 lbs (3,525 kg)
• Length (with bucket): 10.7 ft (3,260 mm)
• Width (with bucket): 5.6 ft (1,710 mm)
• Height to Top of Cab: 6.5 ft (1,981 mm)
• Ground Clearance: 7.5 in (191 mm)
• Wheelbase: 3.2 ft (975 mm)
• Length Without Bucket: 8.6 ft (2,620 mm)
• Height to Bucket Pin: 10.8 ft (3,295 mm)
• Rear Overhang: 4.5 ft (1,372 mm)

Performance:

• Rated Operating Capacity (ROC): 2,700 lbs (1,225 kg)
• Tipping Load: 5,400 lbs (2,448 kg)
• Lift Height: 10.9 ft (3,324 mm)
• Max Reach at Full Lift Height: 2.8 ft (853 mm)
• Max Dump Height: 8.3 ft (2,530 mm)
• Dump Angle: 40°
• Bucket Rollback (at ground): 30°
• Rollback at Maximum Lift Height: 101°
• Travel Speed (Low): 4.6 mph (7.4 km/h)
• Travel Speed (High): 7.5 mph (12.1 km/h)
• Drawbar Pull: 5,195 lbs (2,355 kg)
• Hydraulic Flow: 24.3 gal/min (92 L/min)
• Hydraulic Pressure: 3,300 psi (22,950 kPa)

Hydraulic System:

• Auxiliary Hydraulic Flow (Standard): 24.3 gal/min (92 L/min)
• Auxiliary Hydraulic Pressure: 3,300 psi (22,950 kPa)
• Lift Cylinder Bore: 2.5 in (64 mm)
• Tilt Cylinder Bore: 2.5 in (64 mm)

Undercarriage:

• Tire Size: 12-16.5
• Track Type: Pneumatic tires (standard)
• Ground Pressure: 5.9 psi (40.7 kPa)
• Number of Tires: 4
• Tire Width: 12 in (305 mm)
• Ground Clearance: 7.5 in (191 mm)

Capacities:

• Fuel Tank Capacity: 23.8 gal (90 L)
• Hydraulic Reservoir Capacity: 15.3 gal (58 L)
• Hydraulic System Fluid Capacity: 24.3 gal (92 L)
• Engine Oil Capacity: 6.5 qt (6.1 L)

Cab Features:

• ROPS: ISO 3471:2008
• FOPS: ISO 3449:2005 Level II
• Operator Cab: Standard
• Heating System: Optional
• Air Conditioning: Optional
• Joystick Controls: Standard
• Seats: Adjustable
• Cab Mounting: Isolated

Brakes and Safety:

• Brakes: Hydraulic wet disc brakes
• Parking Brake: Automatic
• Safety Features:
  • Backup alarm
  • Seat belt interlock
  • Roll-over protection (ROPS)

Additional Features:

• Lift Arm Path: Vertical
• Auxiliary Hydraulics: Standard
• Engine Shutdown: Optional
• Machine Control System: Optional
