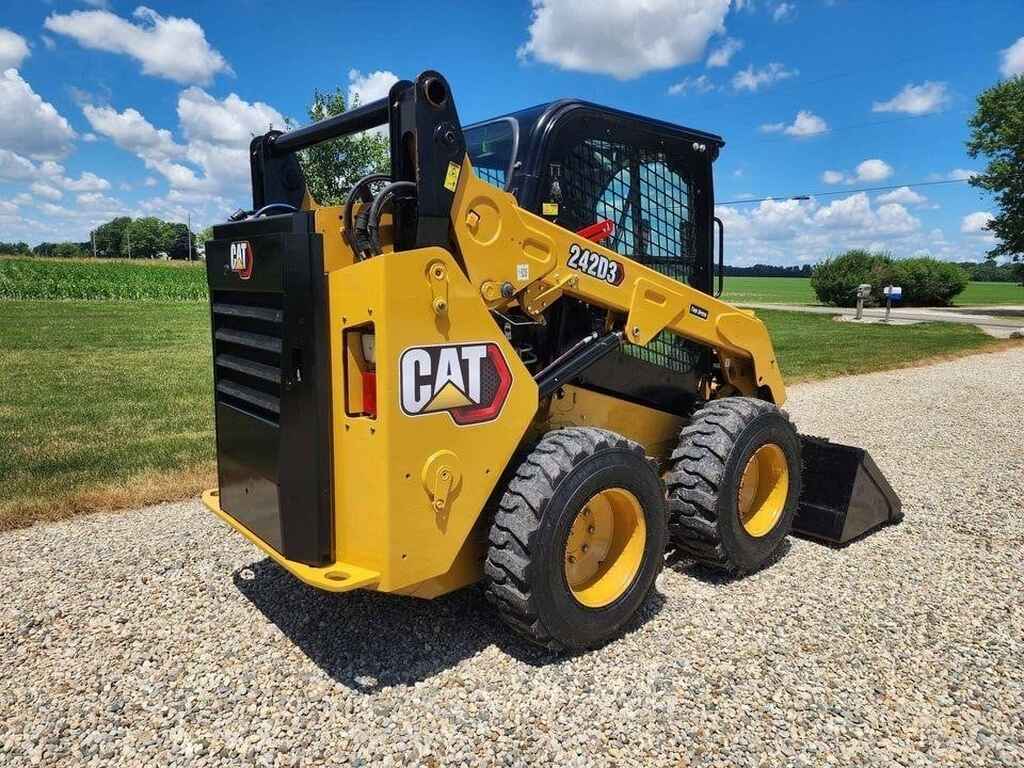

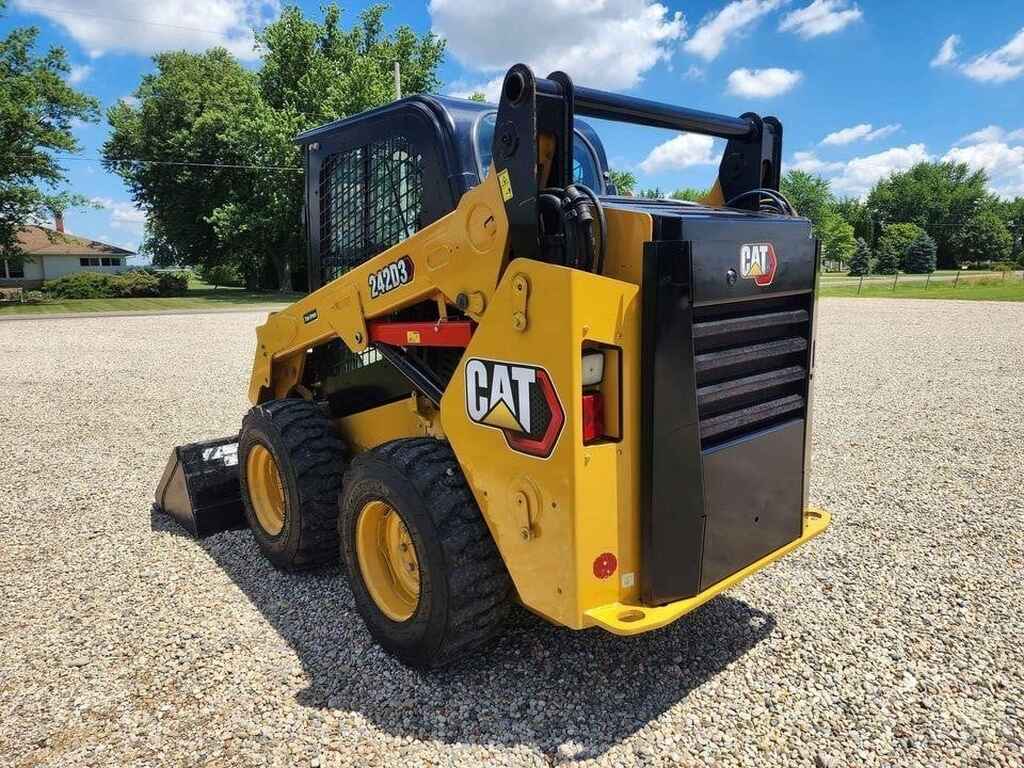

Nice 2021 Cat 242D3
Loaded with Options
Hydraulic Quick Coupler
920 Hours
2 Speed

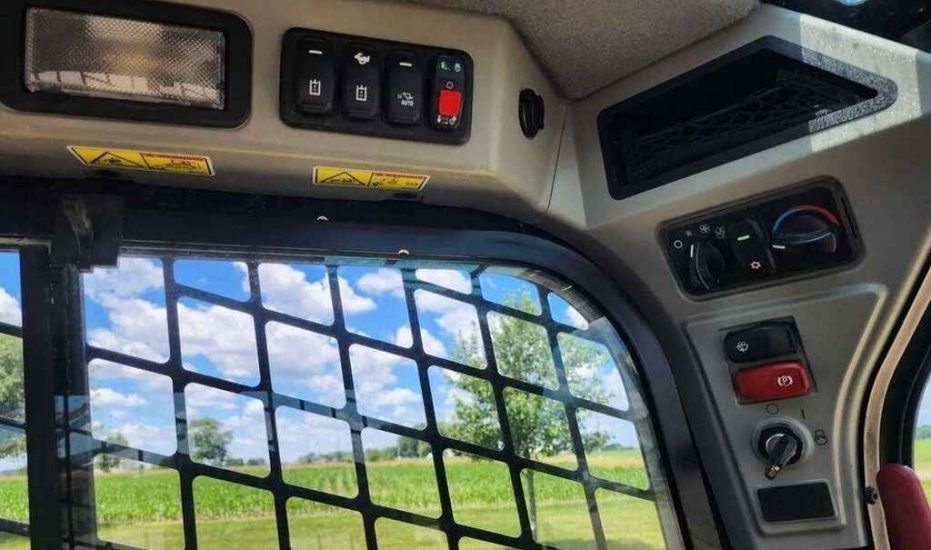

Heat/Ac
Heated Air Ride Seat
Self Leveling Bucket
Am/Fm Radio

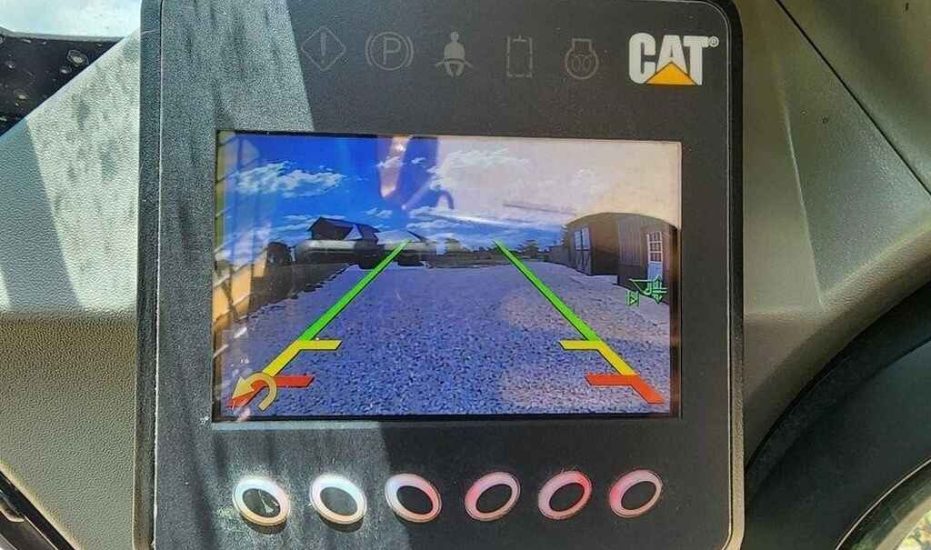

Backup Camera
New Tires
Auxiliary Hydraulics/ 14 pin electric kit
74 Hp non def
Emissions warranty till 9-26
2200 Lb Lift Capacity 4400 tipping
Weighs 7300 Lb

Power & Engine

• Gross Power – SAE J1995: 74.3 hp (55.4 kW)
• Net Power – SAE 1349: 73.2 hp (54.6 kW)
• Net Flywheel Power: 73.2 hp (54.6 kW)
• Net Power – ISO 9249: 73.9 hp (55.1 kW)
• Engine Model: Cat C3.3B DIT (turbo)
• Peak Torque – 1,500 rpm – SAE J1995: 195 ft·lbf (265 N·m)
• Displacement: 203 in³ (3.3 l)
• Stroke: 4.7 in (120 mm)
• Bore: 3.7 in (94 mm)

Performance & Capacities

• Rated Operating Capacity: 2200 lb (1000 kg)
• Rated Operating Capacity with Optional Counterweight: 2410 lb (1095 kg)
• Operating Weight: 7138 lb (3238 kg)
• Tipping Load: 4400 lb (2000 kg)
• Breakout Force – Tilt Cylinder: 4963 lb (2251 kg)

Hydraulic System

• Hydraulic Flow – Standard – Loader Hydraulic Flow: 20 gal/min (76 l/min)
• Hydraulic Flow – Standard – Loader Hydraulic Pressure: 3335 psi (23000 kPa)
• Hydraulic Flow – Standard – Hydraulic Power (Calculated): 39 hp (29 kW)
• Hydraulic Flow – High Flow – Maximum Loader Hydraulic Flow: 30 gal/min (112 l/min)
• Hydraulic Flow – High Flow – Maximum Loader Hydraulic Pressure: 3335 psi (23000 kPa)
• Hydraulic Flow – High Flow – Hydraulic Power (Calculated): 58 hp (43 kW)

Dimensions

• Wheel Base: 43.5 in (1105 mm)
• Height – Top of Cab: 83.1 in (2111 mm)
• Vehicle Width over Tires: 66 in (1676 mm)
• Ground Clearance: 8.7 in (222 mm)
• Departure Angle: 27°
• Maximum Dump Angle: 52°
• Length – Without Bucket: 108.9 in (2767 mm)
• Length – With Bucket on Ground: 137.3 in (3487 mm)
• Bucket Pin Height – Maximum Lift: 121.1 in (3076 mm)
• Maximum Overall Height: 154.2 in (3917 mm)
• Bucket Pin Height – Carry Position: 7.9 in (200 mm)
• Bucket Pin Reach – Maximum Lift: 7.2 in (182 mm)
• Reach – Maximum Lift/Dump: 21.7 in (552 mm)
• Maximum Reach – With Arms Parallel to Ground: 49.2 in (1249 mm)
• Clearance at Maximum Lift and Dump: 90 in (2285 mm)
• Turning Radius from Center – Bucket: 83 in (2107 mm)
• Turning Radius from Center – Coupler: 51.8 in (1314 mm)
• Turning Radius from Center – Machine Rear: 64.5 in (1639 mm)
• Bumper Overhang – Behind Rear Axle: 40.2 in (1021 mm)

Travel Speed

• Travel Speed – Forward or Reverse – One Speed: 7.5 mile/h (12.1 km/h)
• Travel Speed – Forward or Reverse – Two Speed Option: 11.5 mile/h (18.5 km/h)

Fluids & Tank Capacities

• Chain Box – Each Side: 2.3 gal (US) (8.8 l)
• Cooling System: 3.7 gal (US) (14 l)
• Engine Crankcase: 3 gal (US) (11 l)
• Fuel Tank: 24.8 gal (US) (94 l)
• Hydraulic System: 13.2 gal (US) (50 l)
• Hydraulic Tank: 10.3 gal (US) (39 l)

Noise Levels

• Outside Cab: 101 dB(A)
• Inside Cab: 83 dB(A)

ROPS & FOPS

• ROPS: ISO 3471:2008
• FOPS: ISO 3449:2005 Level I

Air Conditioning System

• Refrigerant Type: R134a
• Global Warming Potential: 1430
• Refrigerant Amount: 0.81 kg
• CO2 Equivalent: 1.158 metric tonnes
