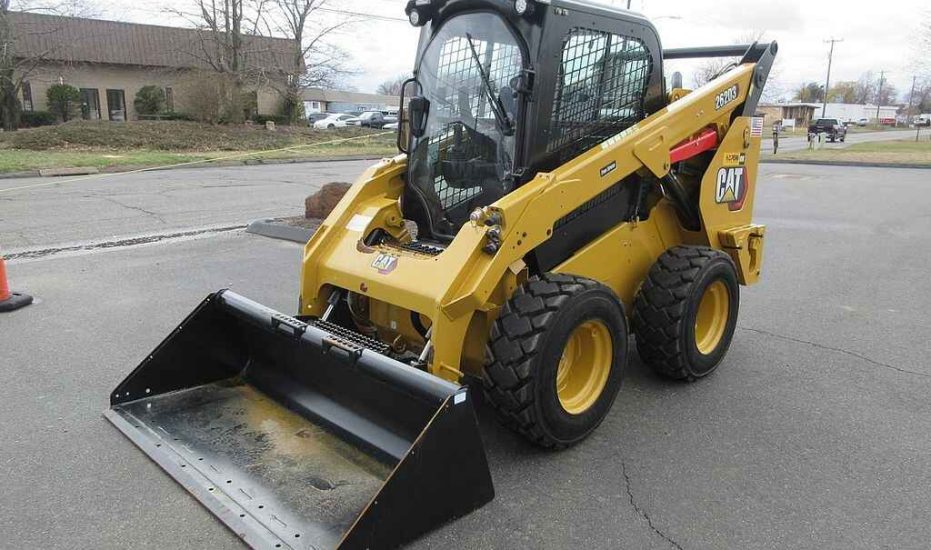

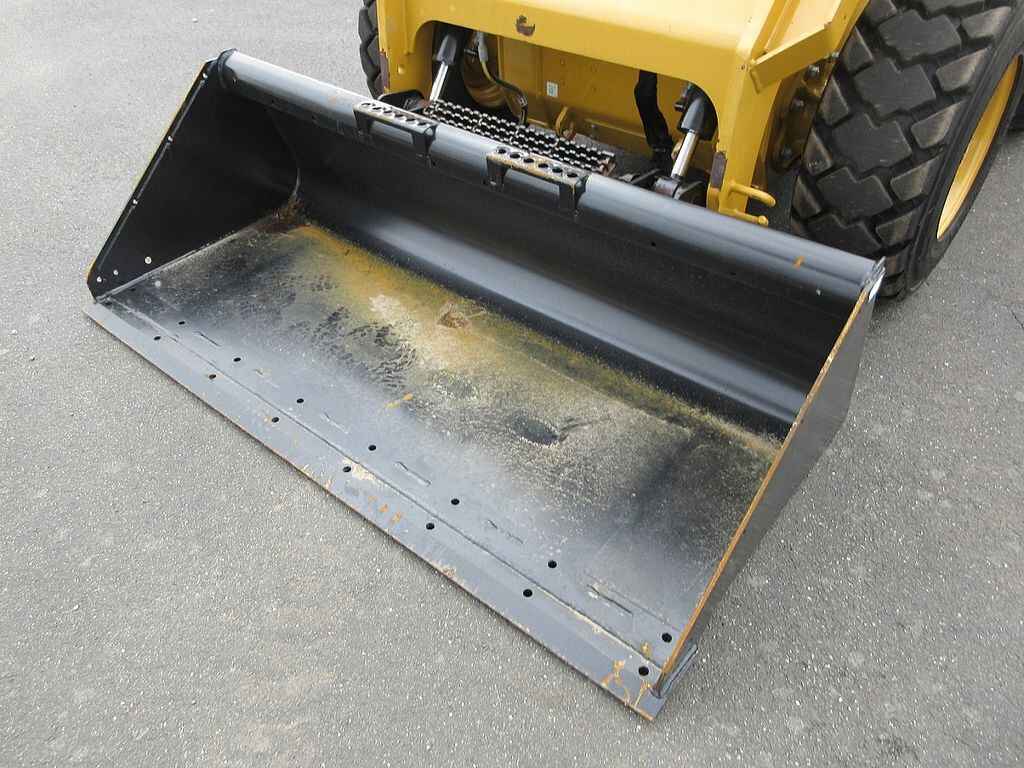

Caterpillar C3.3B 4 cyl turbo diesel, cab with heat, A/C, stereo, ride control, rearview camera, 2 speed travel, aux hyd, aux electrical connector, hyd coupler, GP bucket, meter reads 365 hours, S/N CAT0262DVZB201674, EXCELLENT CONDITION.

Engine:

• Model: Cat® C3.3B DIT (turbo)
• Gross Power (SAE J1995): 74.3 hp (55.4 kW)
• Net Power (SAE 1349): 71.8 hp (53.5 kW)
• Displacement: 203 in³ (3.3 L)
• Bore: 3.7 in (94 mm)
• Stroke: 4.7 in (120 mm)

Operating Specifications:

• Rated Operating Capacity: 2,700 lb (1,225 kg)
• Tipping Load: 5,400 lb (2,450 kg)
• Breakout Force (Tilt Cylinder): 7,355 lb
• Operating Weight: 8,296 lb (3,763 kg)

Dimensions:

• Length with Bucket: 12.2 ft (3,715 mm)
• Length without Bucket: 9.8 ft (2,985 mm)
• Height to Top of Cab: 6.9 ft (2,110 mm)
• Wheelbase: 4.1 ft (1,255 mm)
• Ground Clearance: 8.9 in (227 mm)
• Width over Tires: 66 in (1,676 mm)
• Bucket Pin Height at Maximum Lift: 10.4 ft (3,170 mm)
• Reach at Maximum Lift and Dump: 30.9 in (785 mm)
• Clearance at Maximum Lift and Dump: 7.8 ft (2,380 mm)

Hydraulic System:

• Standard Flow:
  • Loader Hydraulic Flow: 23 gal/min (86 L/min)
  • Loader Hydraulic Pressure: 3,335 psi (230 bar)
• High Flow XPS:
  • Maximum Loader Hydraulic Flow: 32 gal/min (121 L/min)
  • Maximum Loader Hydraulic Pressure: 4,061 psi (280 bar)

Service Refill Capacities:

• Fuel Tank: 24.8 gal (94 L)
• Cooling System: 3.7 gal (14 L)
• Hydraulic System (including tank): 13.7 gal (52 L)
• Hydraulic Tank: 10.3 gal (39 L)
• Engine Crankcase: 3.0 gal (11 L)

Cab:

• ROPS: ISO 3471:2008
• FOPS: ISO 3449:2005 Level I
• FOPS Level II (optional): ISO 3449:2005 Level II
