2022 CAT 306 NEXT GEN CLEAN!

PRICE FIRM NO TAX OR FEES

6MONTH/1500HR FULL WARRANTY!

Emissions warranty into 2027! Just FULLY cleaned, Serviced & Greased! $AVE on this one! Delivery Available!

– 1,998 WELL KEPT Hrs

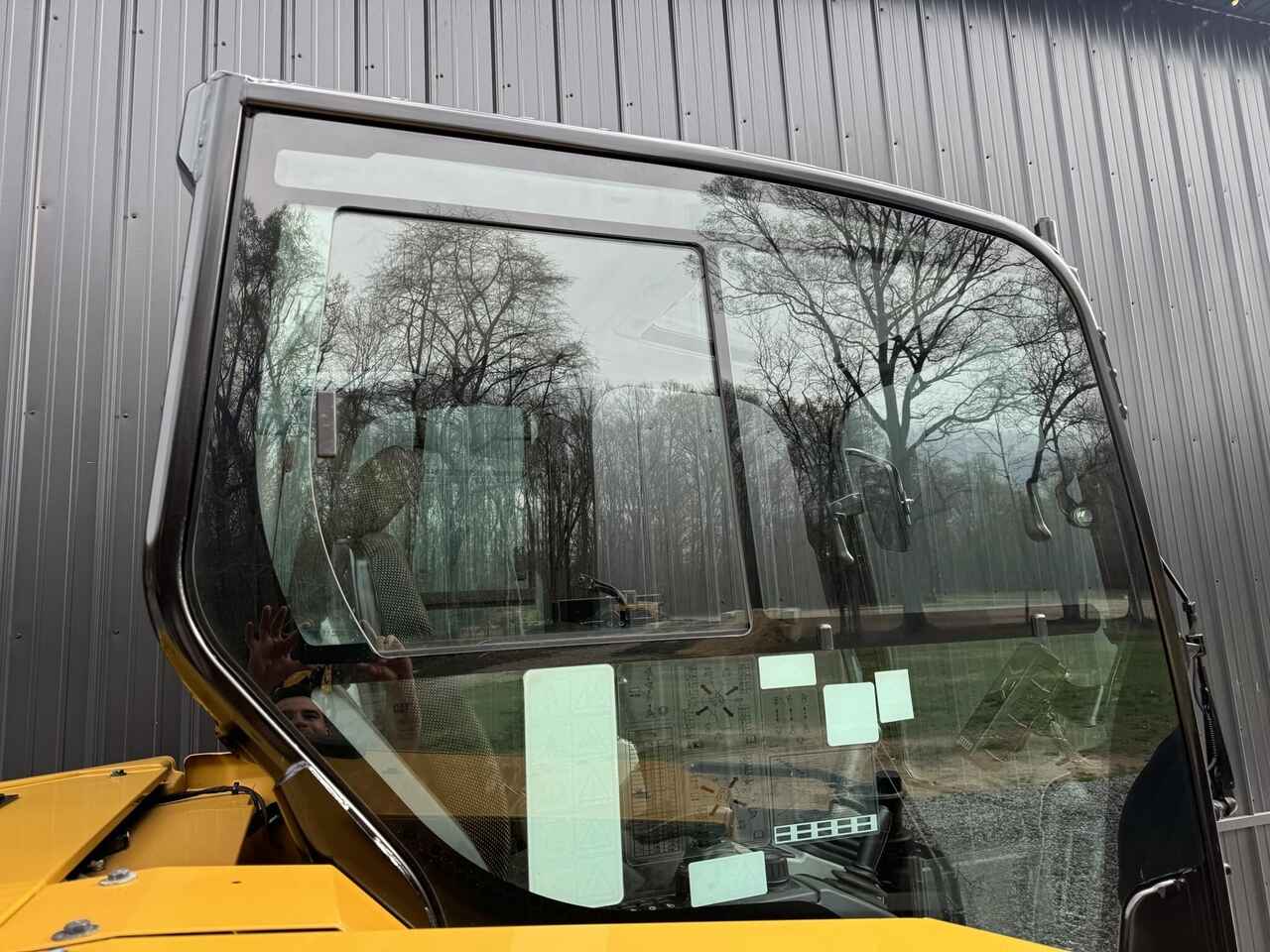

– HEAT/AC & RADIO
– Stick Steer
- Rear Camera
– Hydraulic Coupler
– 18” and 36" Buckets
– Hydraulic Thumb
– 2 speed
– 16k lbs
– 56 Hp
– And More!

Machine is READY TO WORK!

Key Specifications:

• Operating Weight (Cab): 15,766 lbs
• Operating Weight (Canopy): 15,633 lbs
• Dig Depth: 146 in
• Maximum Reach: 248 in
• Maximum Dump Clearance: 170 in
• O/A Shipping Dimensions:
  • Height: 100 in
  • Length: 235 in
  • Track Width: 78 in

Performance & Hydraulics:

• Hydraulic System Type: Load Sensing Hydraulics with Variable Displacement Piston Pump
• Pump Flow: 40 GPM @ 2,400 RPM
• Operating Pressures:
  • Swing: 3,263 PSI
  • Equipment & Travel: 3,553 PSI
• Digging Forces:
  • Bucket: 11,578 lbf
  • Stick (Standard): 6,632 lbf
  • Stick (Long): 5,957 lbf
• Auxiliary Circuits:
  • Primary Flow: 24 GPM @ 3,553 PSI
  • Secondary Flow: 9 GPM @ 3,553 PSI

Engine & Powertrain:

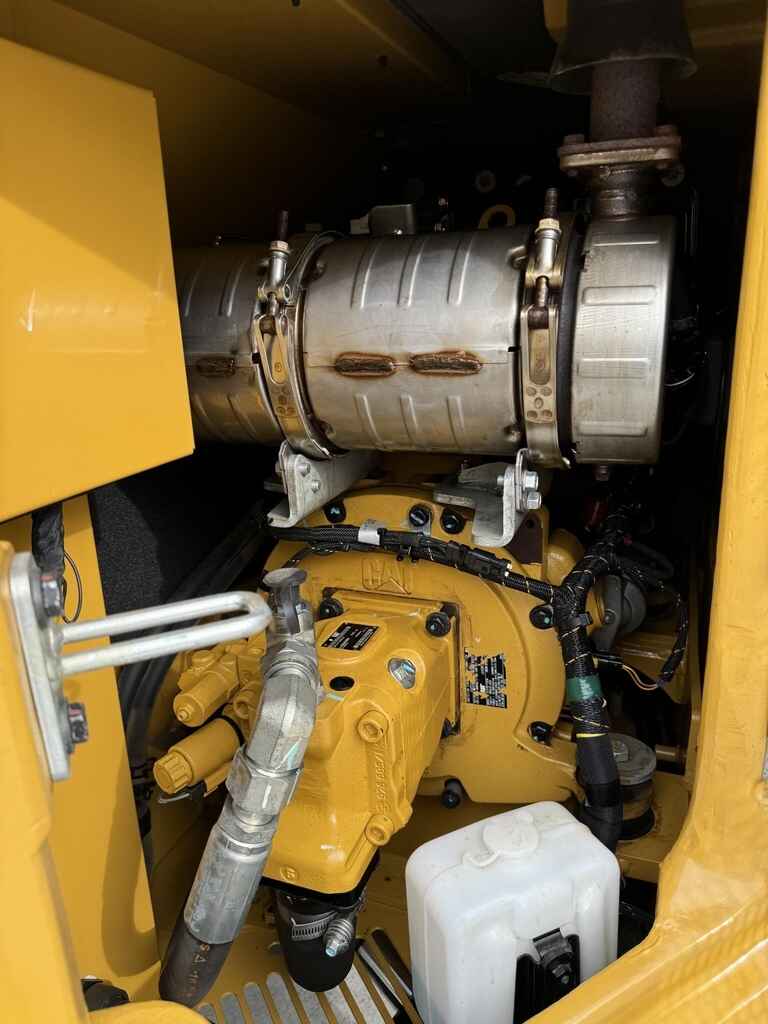

• Engine Model: CAT C2.4 Turbo
• Net Power: 55.9 HP @ 2,200 RPM
• Displacement: 148 cu in
• Fuel Tank Capacity: 34.3 gal
• Travel Speed:
  • High: 3.1 mph
  • Low: 1.7 mph

Undercarriage & Track System:

• Track Shoe Width: 16 in
• Undercarriage Length: 102 in
• Tail Swing:
  • With Counterweight: 58 in
  • Without Counterweight: 53 in
• Ground Pressure:
  • Minimum Weight: 5.1 PSI
  • Maximum Weight: 5.7 PSI

Operator & Safety Features:

• ROPS Certified (ISO 12117-2:2008)
• TOPS Certified (ISO 12117:1997)
• Cab with Air Conditioning
• Automatic Swing Brake
• Hydraulic Release System
• Recyclability: 96%

Blade Dimensions & Capabilities:

• Straight Blade:
  • Width: 78 in
  • Height: 15.4 in
• Angle Blade:
  • Width: 78 in
  • Height: 15.7 in
• Maximum Blade Lift Height: 16 in
• Maximum Blade Dig Depth: 24 in

Lift Capacities (At Ground Level)

Weight Increases from Minimum Configuration:

• Counterweight: +551 lbs
• Long Stick: +97 lbs
• Steel Tracks with Pads: +827 lbs
• Angle Blade: +225 lbs
• XTC Carriage (No Tool): +141 lbs
